Topcon GM100 Series 1″ Total Station -20 To +60ºC (-4 To +140ºF) Operating Temperature Topcon GM101
In Stock
$0.00
In Stock
Description
Detail Information
| Brand: | Topcon GM100 Series | Control Panel Location: | On Both Faces |
|---|---|---|---|
| Country: | Made In Japan | Name: | Topcon GM101 |
| Magnification / Resolving Power: | 30x / 2.5″ | Dust And Water Protection / Operating Temperature: | IP66 (IEC 60529:2001) / -20 To +60ºC (-4 To +140ºF) |
| Laser-pointer: | Coaxial Red Laser Using EDM Beam | Guide Light: | Green LED (524nm) And Red LED (626nm), Operating Range: 1.3 To 150m (4.3 To 490ft.) |
| Levels Graphic: | 6’ (Inner Circle | Operating Time (20ºC)*: | BDC70: Approx. 28hours |
| Operating Time (20ºC): | BDC70: Approx. 28hours | Minimum Display: | 1″/5″ (0.0002 / 0.001gon, 0.005 / 0.02mil) |
| Highlight: |
GM100 Series Electronic Total Station, IP66 Waterproof Total Station |
||
Product Description

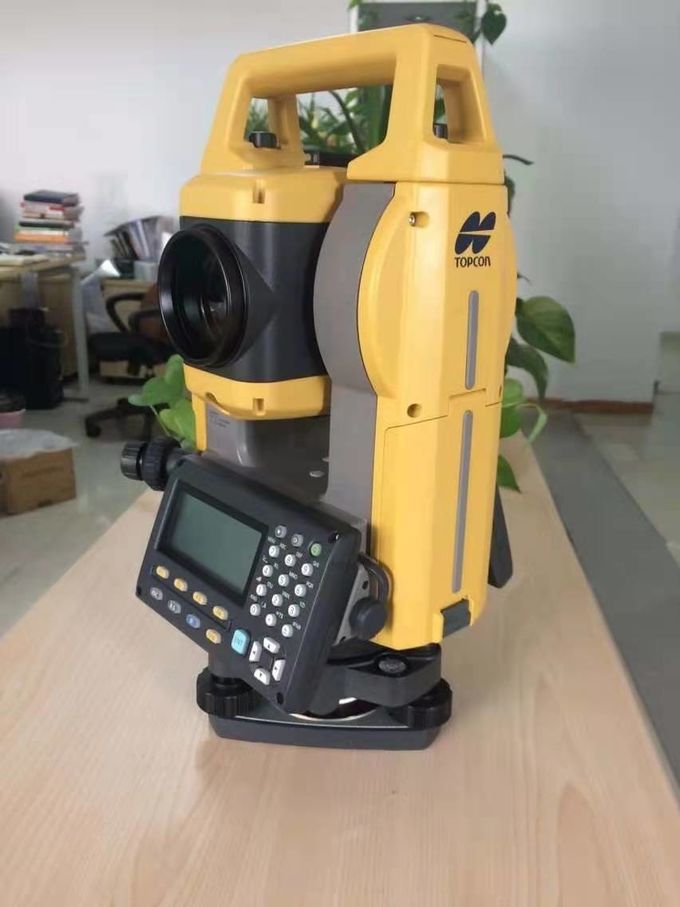

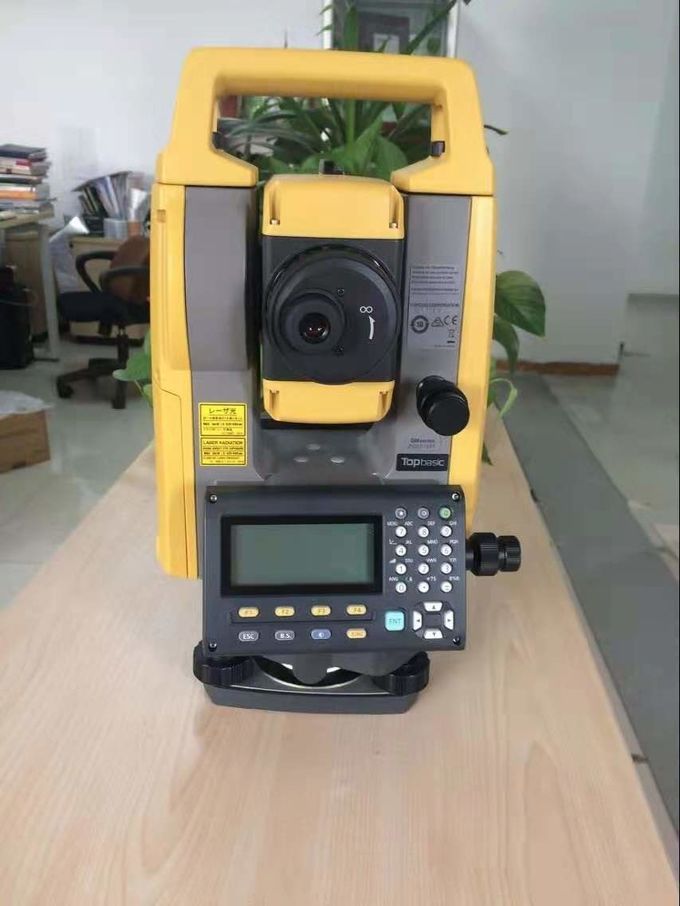

Topcon GM100 series 1″ Total Station -20 to +60ºC (-4 to +140ºF) Operating temperature Topcon GM101:
Key Features:
- 1,000 m non-prism range
- 6,000 m prism range
- “Best-in-class” 1″angle accuracy
- Up to 32 GB storage
- Waterproof/dust-proof IP66
- Environmentally protected
- Compatible with industry standard thumb drives
- 21 hour battery life in normal mode
Description
This powerful, cost efficient Manual Total Station was designed from the ground up to deliver the latest technological advantages in a small, sleek design. It features an ultra-powerful EDM, best-in-class angle accuracy encoder system to provide the accuracy, speed, and endurance needed on the most demanding job sites. Plus, with a rugged housing and extented battery-life you’ll be able to handle even the toughest conditions.
The GM-105 Manual Total Station was designed from the ground up to deliver the latest technological advantages in a small, sleek design. It’s rugged waterproof/dustproof magnesium-alloy housing encases an ultra-powerful 6,000m prism range 1.5mm accuracy EDM, Best-in-class 1″ angle accuracy angle encoder system, and 28 hour battery-life power supply. The GM-100 also features dual axis compensation, 32 GB USB, Bluetooth to 10m and TSshield™ telematics for ultimate security and investment protection.
Designed to deliver the latest technological advantages in a sleek design, each GM-100 total station is equipped with a best-in-class EDM. The total station measures up to 5,000 meters to standard prisms (6,000 meters under good conditions) and up to 800 meters in reflectorless mode. Other features include a built-in laser plummet, dual-axis compensation, Bluetooth® connectivity, and a battery life of up to 28 hours. In addition to an internal memory of 50,000 points, the total station also features a USB 2.0 slot for up to 32GB of storage. TSshield™ technology provides ultimate security and maintenance capabilities for your total station thanks to a telematics-based multi-function communications module. If an activated total station is lost or stolen, just send a coded signal to the instrument and disable it – anywhere in the world. You can also access cloud-based Topcon servers for available software updates and firmware enhancements. Waterproof/dustproof IP66 design.

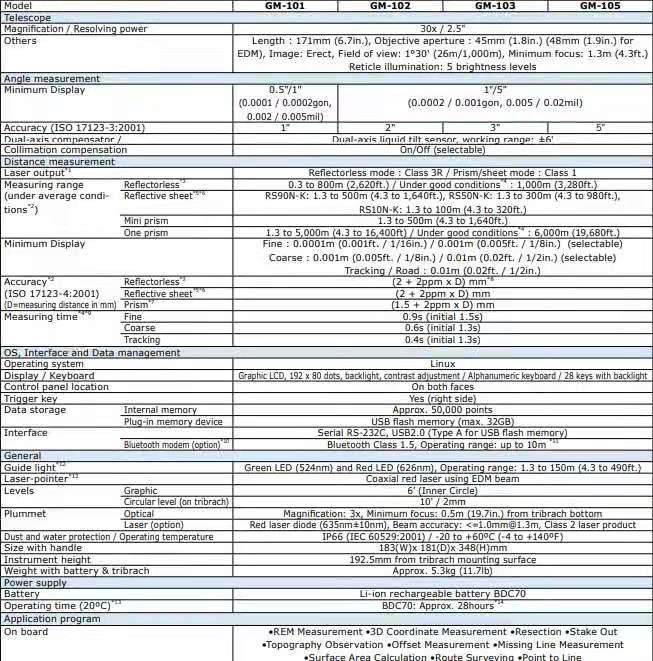

| Model | GM-series | |
| Telescope | ||
| Magnification / Resolving power | 30x / 2.5″ | |
| Others | Length : 171mm (6.7in.), Objective aperture : 45mm (1.8in.) (48mm (1.9in.) for EDM), Image: Erect, Field of view: 1°30′ (26m/1,000m), Minimum focus: 1.3m (4.3ft.) Reticle illumination: 5 brightness levels |
|
| Angle measurement | ||
| Minimum Display | 1″/5″ (0.0002 / 0.001gon, 0.005 / 0.02mil) | |
| Accuracy (ISO 17123-3:2001) | 5″ | |
| Dual-axis compensator / | Dual-axis liquid tilt sensor, working range: ±6′ | |
| Collimation compensation | On/Off (selectable) | |
| Distance measurement | ||
| Laser output*1 | Reflectorless mode : Class 3R / Prism/sheet mode : Class 1 | |
| Measuring range | Reflectorless | 0.3 to 800m (2,620ft.) / Under good conditions*4 : 1,000m (3,280ft.) |
| Reflective sheet | RS90N-K: 1.3 to 500m (4.3 to 1,640ft.), RS50N-K: 1.3 to 300m (4.3 to 980ft.), | |
| RS10N-K: 1.3 to 100m (4.3 to 320ft.) | ||
| Mini prism | 1.3 to 500m (4.3 to 1,640ft.) | |
| One prism | 1.3 to 5,000m (4.3 to 16,400ft) / Under good conditions*4 : 6,000m (19,680ft.) | |
| Minimum Display | Fine / Rapid : 0.0001m (0.001ft. / 1/16 in.) / 0.001m (0.005ft. / 1/8 in.) (selectable) | |
| Tracking / Road : 0.001m (0.005ft. / 1/8 in.) / 0.01m (0.02ft. / 1/2 in.) (selectable) | ||
| Accuracy*2 | Reflectorless*3 | (2 + 2ppm x D) mm |
| Reflective sheet* | (2 + 2ppm x D) mm | |
| Prism*7 | (1.5 + 2ppm x D) mm | |
| Measuring time* | Fine | 0.9s (initial 1.5s) |
| Rapid | 0.6s (initial 1.3s) | |
| Rapid | 0.4s (initial 1.3s) | |
| OS, Interface and Data management | ||
| Operating system | Linux | |
| Display / Keyboard | Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / Alphanumeric keyboard / 28 keys with backlight | |
| Control panel location | On both faces | |
| Trigger key | Yes (right side) | |
| Data storage | Internal memory | Approx. 50,000 points |
| Plug-in memory device | USB flash memory (max. 32GB) | |
| Interface | Serial RS-232C, USB2.0 (Type A for USB flash memory) | |
| Bluetooth modem | Bluetooth Class 1.5, Operating range: up to 10m | |
| General | ||
| Guide light | Green LED (524nm) and Red LED (626nm), Operating range: 1.3 to 150m (4.3 to 490ft.) | |
| Laser-pointer | Coaxial red laser using EDM beam | |
| Levels | Graphic | 6’ (Inner Circle |
| Circular level | 10′ / 2mm | |
| Plummet | Optical | Magnification: 3x, Minimum focus: 0.5m (19.7in.) from tribrach bottom |
| Laser (option) | Red laser diode (635nm±10nm), Beam accuracy: <=1.0mm1.3m, Class 2 l aser product | |
| Dust and water protection / Operating temperature | IP66 (IEC 60529:2001) / -20 to +60ºC (-4 to +140ºF) | |
| Size with handle | 183(W)x 181(D)x 348(H)mm | |
| Instrument height | 192.5mm from tribrach mounting surface | |
| Weight with battery & tribrach | Approx. 5.3kg (11.7lb) | |
| Power supply | ||
| Battery | Li-ion rechargeable battery BDC70 | |
| Operating time (20ºC)* | BDC70: Approx. 28hours | |

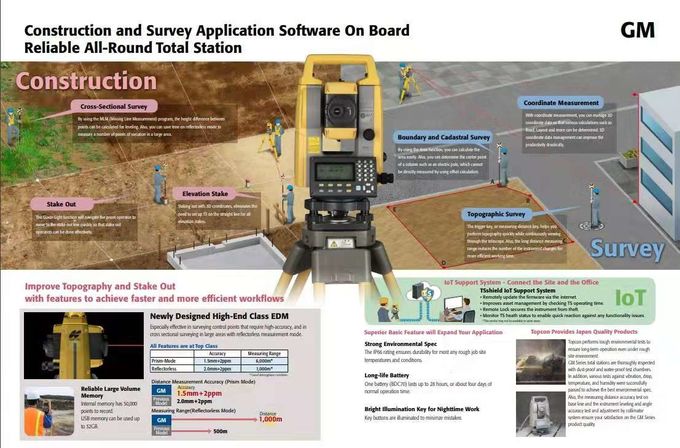

| Application program | ||
| On board | •REM Measurement •3D Coordinate Measurement •Resection •Stake Out | |
| •Topography Observation •Offset Measurement •Missing Line Measurement | ||
| • Intersection •Surface Area Calculation •Route Surveying •Point to Line | ||
