Topcon GM-55 5″ Dual-Axis Liquid Tilt Sensor Total Station In Stock
In Stock
$0.00
In Stock
Description
Detail Information
| Brand: | Topcon GM55 | Measuring Range Reflective Sheet: | RS90N-K: 1.3 To 500m (4.3 To 1,640ft.), RS50N-K: 1.3 To 300m (4.3 To 980ft.), RS10N-K: 1.3 To 100m (4.3 To 320ft.) |
|---|---|---|---|
| Laser Output*1 Reflectorless Mode: | Class 3R / Prism/sheet Mode : Class 1 | Minimum Display Fine / Coarse: | 0.0001m (0.001ft. / 1/8 In.) / 0.001m (0.005ft. / 1/8 In.) (selectable) Coarse : 0.001m (0.005ft. / 1/8 In.) / 0.01m (0.02ft. / 1 In.) |
| Display / Keyboard: | Graphic LCD, 192 X 80 Dots, Backlight : On/off (Selectable) / Alphanumeric Keyboard / 28 Keys With Backlight | Control Panel Location: | On Both Faces |
| Operating System: | Linux | Accuracy: | 5″ |
| Type: | Cheap Price | Tracking: | 0.4s (initial 1.3s) |
| Coarse: | 0.6s (initial 1.3s) | ||
| Highlight: |
Dual Axis Liquid Total Station Machine, GM-55 Tilt Sensor Total Station |
||
Product Description

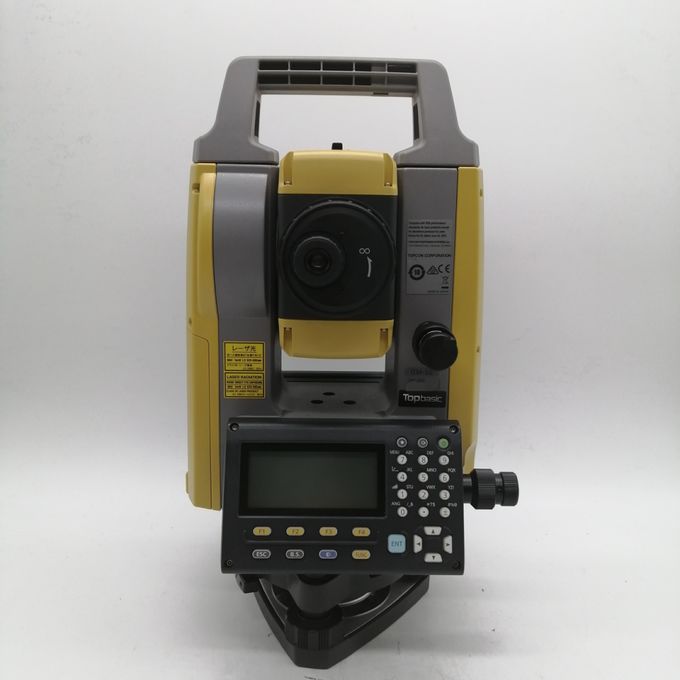

Topcon GM-55 5″ Dual-axis liquid tilt sensor Total Station in stock :
TOPCON GM52 WITH COMPETITIVE TOTAL STATION PRICE , ORIGINAL MADE IN JAPAN
• Fast distance measurement of 0.9s regardless of object.
• Minimum reflectorless measuring distance – just 30cm.
• Improved collimation with super-bright pointer.
• Smaller EDM beam spot size for minimal distance measuring error.
• Dependable measuring even at shallow incidence angles.
• Ensures accurate reflective sheet distance measurement.
Fast and Powerful Reflectorless EDM
We perform the tough environmental tests to ensure long-term operation even under the rough site environments. GM Series total stations are thoroughly inspected with dust-proof and water-proof test chambers. In addition, the various tests against vibration, drop, temperature, and humidity were successfully passed to achieve the best environmental spec. Also, the measuring distance accuracy test on base line and the instrument leveling and angle accuracy test and adjustment by collimator system ensure your satisfaction on GM Series product quality. • Fast and accurate pinpointing with phase shift technology.
|

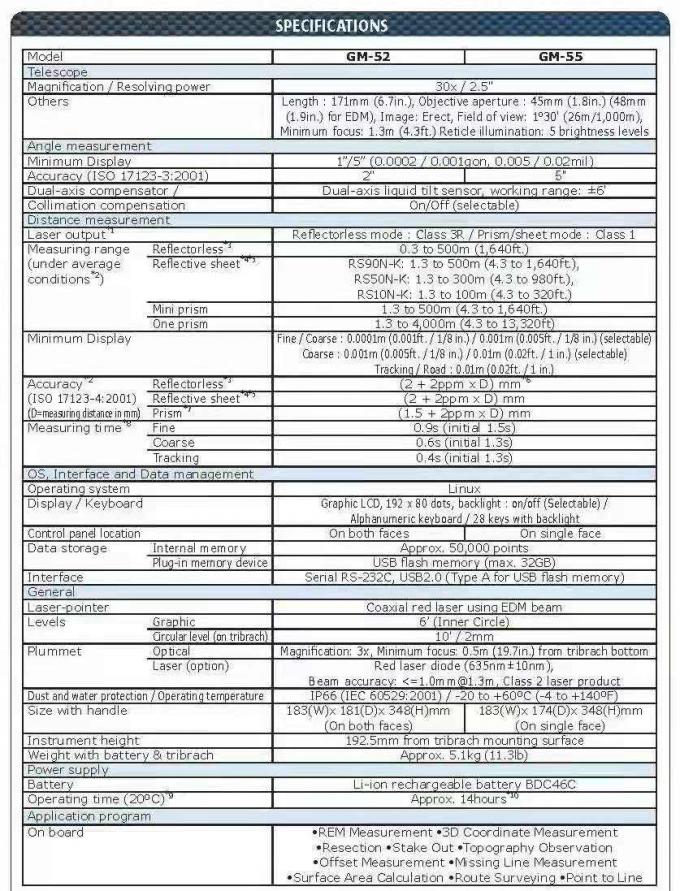

Telescope
|
|
|
Magnification / Resolving power
|
30x / 2.5″
|
|
Others
|
Length : 171mm (6.7in.), Objective aperture : 45mm (1.8in.) (48mm
(1.9in.) for EDM), Image: Erect, Field of view: 1°30′ (26m/1,000m), Minimum focus: 1.3m (4.3ft.) Reticle illumination: 5 brightness |
|
Angle measurement
|
|
|
Minimum Display
|
1”/5” (0.0002 / 0.001gon, 0.005 / 0.02mil)
|
|
Accuracy (ISO 17123-3:2001)
|
5″
|
|
Dual-axis compensator /
|
Dual-axis liquid tilt sensor, working range: ±6′
|
|
Collimation compensation
|
On/Off (selectable)
|
|
Distance measurement
|
|
|
Laser output*1
|
Reflectorless mode : Class 3R / Prism/sheet mode : Class 1
|
|
Measuring range Reflectorless
|
0.3 to 500m (1,640ft.)
|
|
Measuring range Reflective sheet
|
RS90N-K: 1.3 to 500m (4.3 to 1,640ft.),
RS50N-K: 1.3 to 300m (4.3 to 980ft.), RS10N-K: 1.3 to 100m (4.3 to 320ft.) |
|
Mini prism
|
1.3 to 500m (4.3 to 1,640ft.)
|
|
One prism
|
1.3 to 4,000m (4.3 to 13,320ft)
|
|
Minimum Display
|
Fine / Coarse : 0.0001m (0.001ft. / 1/8 in.) / 0.001m (0.005ft. / 1/8 in.) (selectable)
Coarse : 0.001m (0.005ft. / 1/8 in.) / 0.01m (0.02ft. / 1 in.) |
|
Accuracy
|
|
|
Reflectorless
|
(2 + 2ppm x D) mm*
|
|
Reflective sheet
|
(2 + 2ppm x D) mm
|
|
Prism
|
(1.5 + 2ppm x D) mm
|
|
Fine
|
0.9s (initial 1.5s)
|
|
Coarse
|
0.6s (initial 1.3s)
|
|
Tracking
|
0.4s (initial 1.3s)
|
|
OS, Interface and Data management
|
|
|
Operating system
|
Linux
|
|
Display / Keyboard
|
Graphic LCD, 192 x 80 dots, backlight : on/off (Selectable) /
Alphanumeric keyboard / 28 keys with backlight |
|
Control panel location
|
On both faces
|
|
Internal memory
|
Approx. 50,000 points
|
|
Plug-in memory device
|
USB flash memory (max. 32GB)
|
Packaging & Shipping
Our Services
1. Warranty: 12 months warranty is offered for survey equipment. 6 months warranty offered for survey accessory. Warranty comes in effective from the day your receive good.
2. Repair in warranty: We are responsible for supplying new parts for repairing. Round way freight will be charged by us. If it is necessary, product will be required to send back to our service center to be repaired, round way freight is charged by us. Our engineer will repair in your office for special case.
3. Repair out of warranty: We will offer related parts at commercial cost. Freight will be shared by us
4. Training and calibration: Our engineer is qualified for training and calibration for GNSS and Total Station on site. We offer this service to bulk order while customer has requirement.
5. Technical support is offered 24/365.
