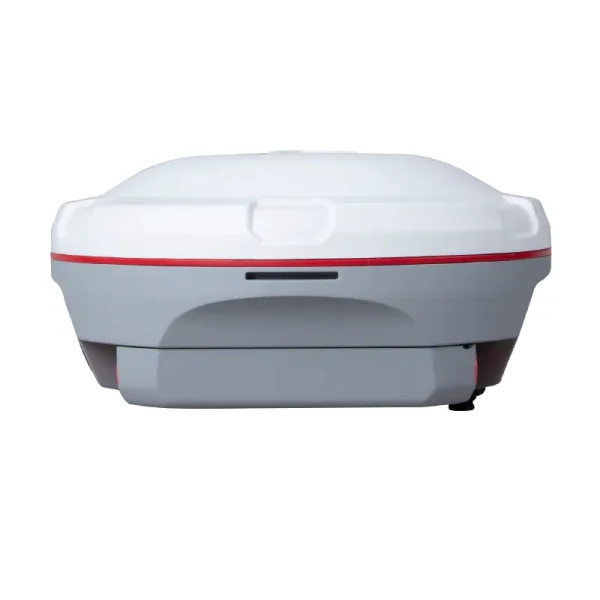

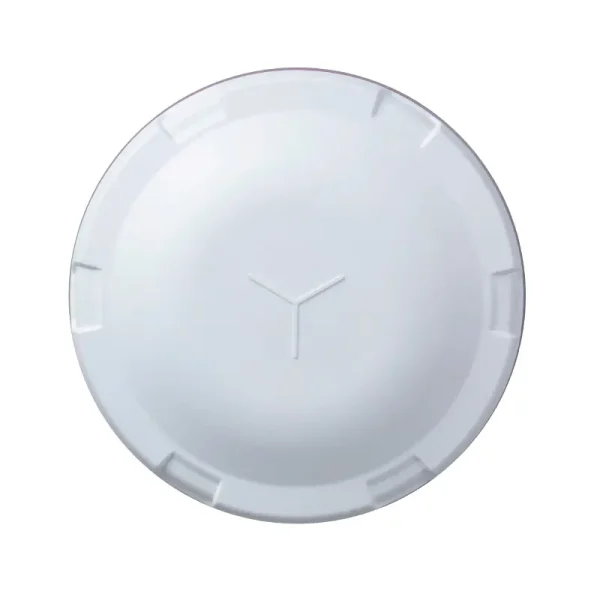

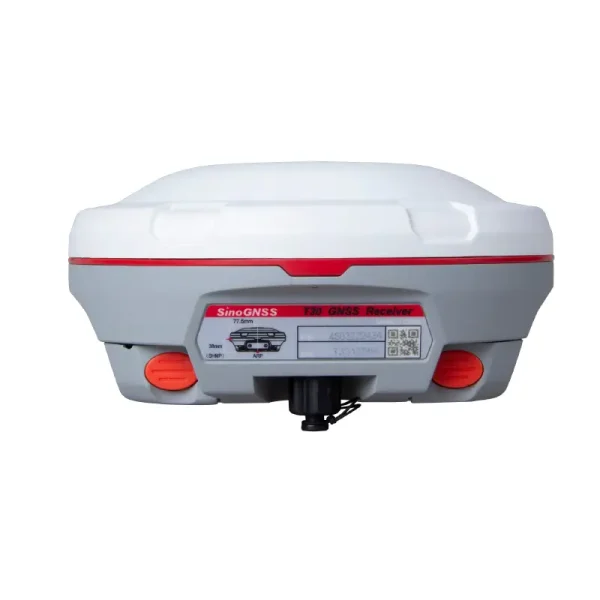

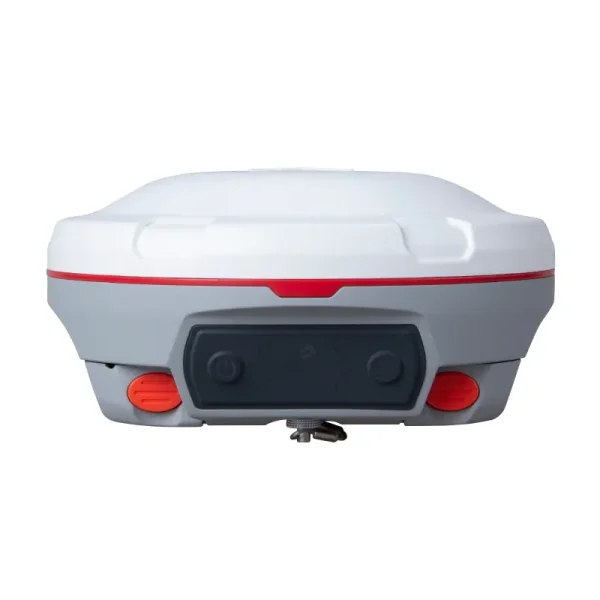

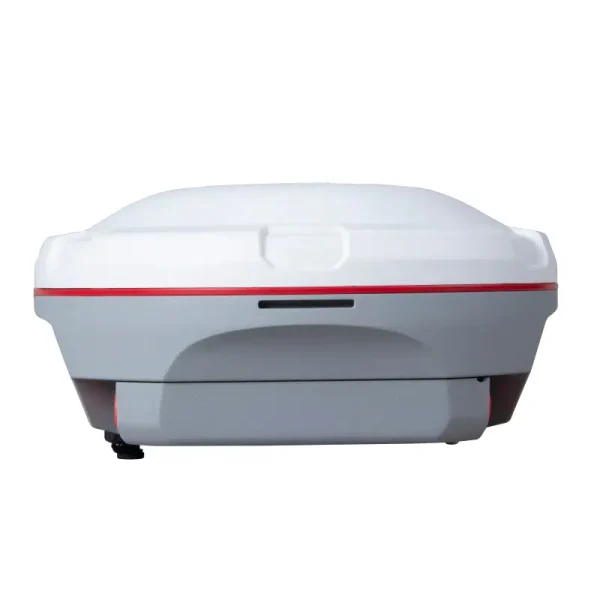

Name: Sino T30 Survey Equipment High Accuracy Gnss Dual-Frequency GPS Receiver RTK
SKU: 3323
Availability: InStock

Description

All we do is usually connected with our tenet ” Customer to start with, Rely on initial, devoting on the food packaging and environmental protection for Rtk Gnss Base And Rover, Best Total Station, Wood Level Tripod, We sincerely welcome all guests to set up business relationships with us on the basis of mutual benefits. Please contact us now. You will get our professional reply within 8 hours.

Sino T30 Survey Equipment High Accuracy Gnss Dual-Frequency GPS Receiver RTK Detail:

Performance	Channels	1198
	Satellites tracking	– GPS: L1 C/A, L2C, L2P, L5
		– BeiDou: B1, B2, B3
		– BeiDou Global Signal: B1C, B2a
		– GLONASS: L1 C/A, L1P, L2 C/A, L2P
		– Galileo: E1, E5a, E5b, E6, AltBOC
		– QZSS, IRNSS
		– L- Band
		– SBAS: WAAS, EGNOS, MSAS, GAGAN
	Network RTK	8 mm + 0.5 ppm Horizontal
	Network RTK	15 mm + 0.5 ppm Vertical
	Post Processing Kinematic(PPK)	5 mm + 1 ppm Horizontal
	Post Processing Kinematic(PPK)	5 mm + 1 ppm Vertical
	PPP	10cm Horizontal and 20cm Vertical
	Standalone	1.5 m 3D RMS
	SBAS	1 m 3D RMS
	DGPS	<0.4 m RMS
	Static and Fast Static	Horizontal: 2.5 mm + 0.5 ppm
	Static and Fast Static	Vertical: 5 mm + 0.5 ppm
	Long Observations Static	Horizontal: 3 mm + 0.1 ppm
	Long Observations Static	Vertical: 3.5 mm + 0.4 ppm
	Real Time Kinematic	8 mm + 1 ppm Horizontal
	Real Time Kinematic	15 mm + 1 ppm Vertical
Physical	Size (W x H)	Φ15.5 cm x 7.3 cm
	Weight	1.2 kg with two batteries
	Power consumption	1.92 W
	Input voltage	7-28 VDC
	Battery	2 x3400 mAh, up to 16 hours typically
	Memory	8 GB
	Operating temperature	-40 °C to + 65 °C (-40 °F to 149 °F)
	Storage temperature	-40 °C to + 85 °C (-40 °F to 185 °F)
	Humidity	100% no condensation
	Waterproof and dustproof	IP67
	Shock	Designed to survive a 2 m drop onto concrete
Communications	1 Serial port (7 pin Lemo)	Baud rates up to 921,600 bps
	UHF modem	– Transmit power: 0.5-2 W adjustable
	UHF modem	– Range: 1-5 km
	4G modem	– LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
		– LTE-TDD: B38/B39/B40/B41
		– WCDMA: B1/B2/B4/B5/B6/B8/B19
		– GSM: B2/B3/B5/B8
	WIFI	802.11b/g/n
	Position data output rate	1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz
	5 LEDs	indicating RTK Corrections data, Satellites Tracking, GPRS status and Power
	Bluetooth	V4.0, compatible with Windows OS and Android OS
	Built-in IMU supports up to 60° tilt compensation
