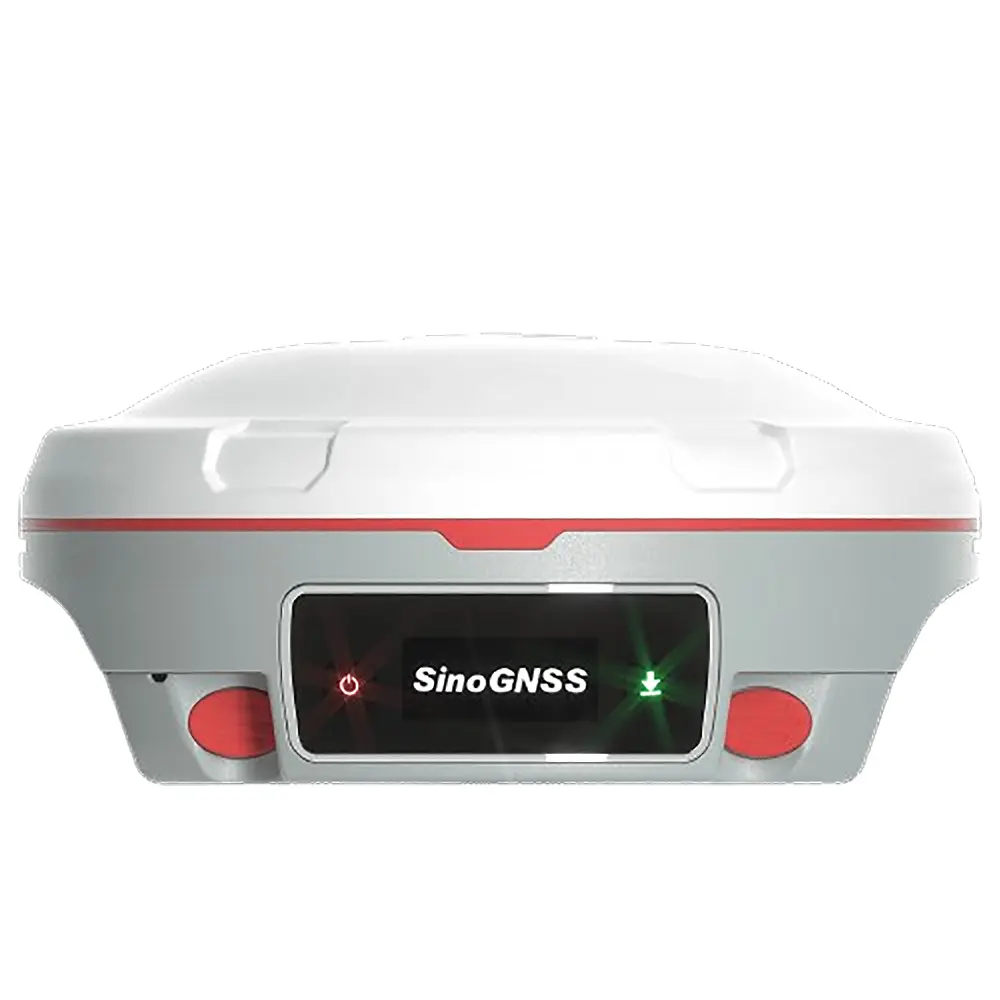

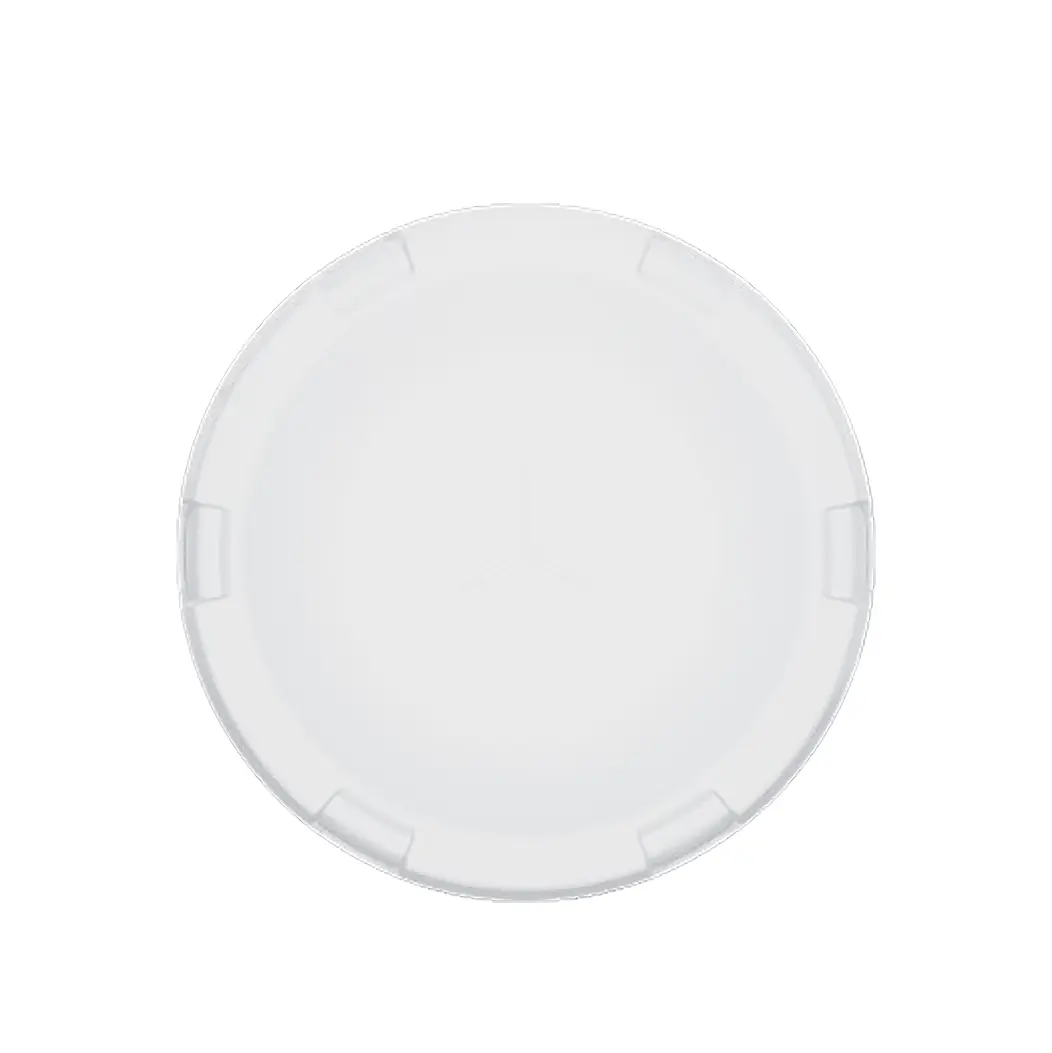

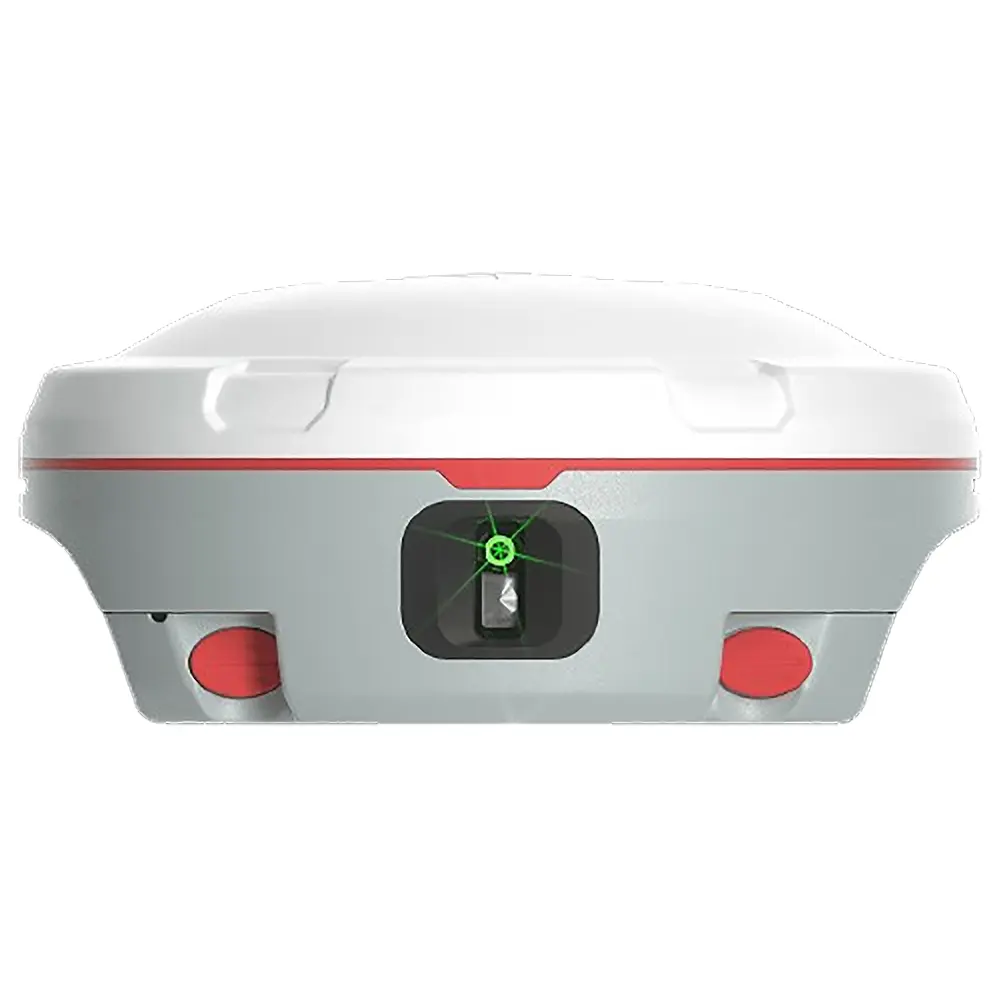

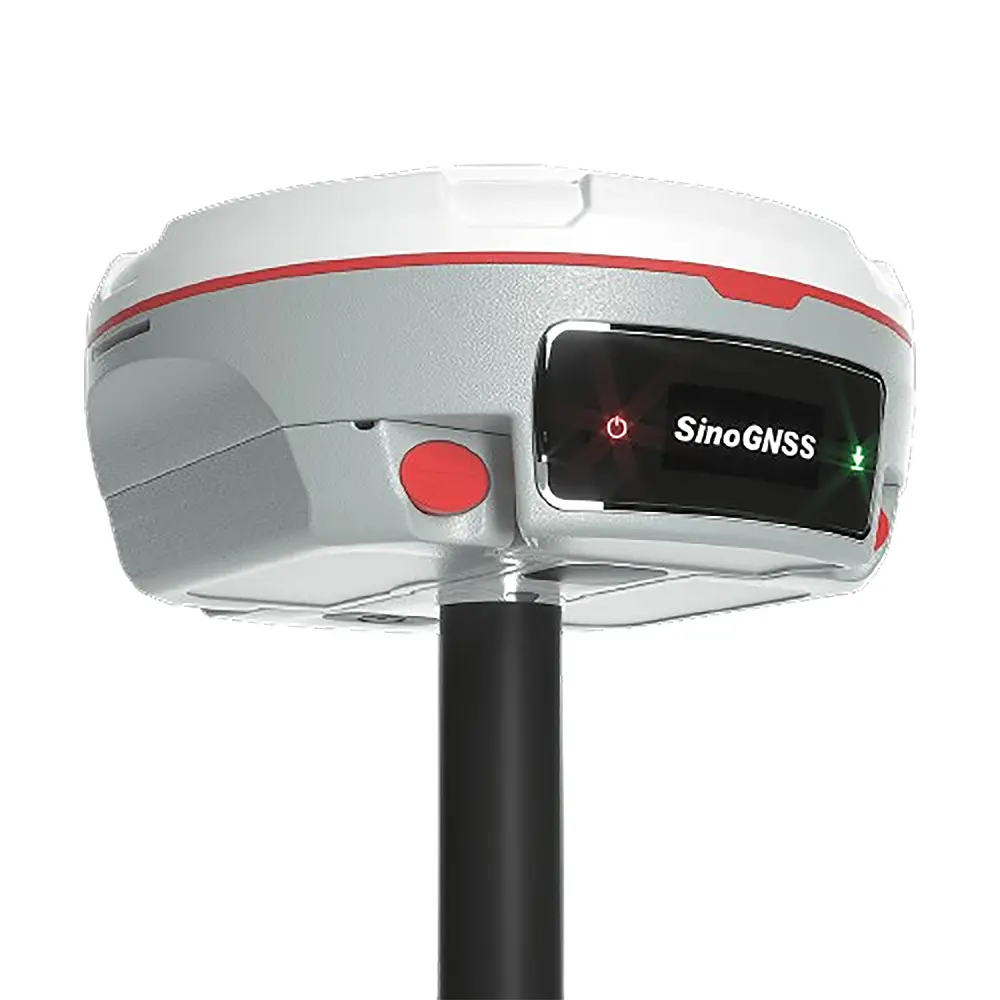

Sino Mars Pro Laser Gnss Gps Receiver Gps Rover And Base Station Construction Survey Equipment Rtk
In Stock
$3,500
In Stock
Description
| Specifications | ||
| Performance | Channels | 1668 |
| GPS | L1C/A, L1C, L2P, L2C, L5 | |
| BDS | B1I, B2I, B3I,B1C,B2a,B2b | |
| GLONASS | G1, G2, G3 | |
| Galileo | E1, E5a, E5b, E6c, E5 AltBOC | |
| QZSS | L1C/A, L2C, L5, L1C | |
| IRNSS | L5 | |
| SBAS | L1C/A | |
| Signal Re-acquisition | ≤1s | |
| RTK Initialization Time | ＜10s (Baseline≤10km) | |
| Network RTK | Horizontal 8 mm + 0.5 ppm | |
| Vertical 15 mm + 0.5 ppm | ||
| Post Processing Kinematic(PPK) | Horizontal 5 mm + 1 ppm | |
| Vertical 5 mm + 1 ppm | ||
| Static and Fast Static | Horizontal 2.5 mm + 0.5 ppm RMS | |
| Vertical 5 mm + 0.5 ppm RMS | ||
| Signal Baseline RTK | Horizontal 8 mm + 1 ppm RMS | |
| Vertical 15 mm + 1 ppm RMS | ||
| DGPS | ＜0.4m RMS | |
| SBAS | Horizontal 0.5m RMS | |
| Vertical 0.8m RMS | ||
| Standalone | 1.5m 3D RMS | |
| Laser Tilt Measurement | ≤5.5cm (5m range,≤60°Tilt in Laser mode) | |
| Physical | Dimension | Φ15.5cm x 7.3cm |
| Weight | 1.2kg with two batteries | |
| Working Temperature | -40℃~+65℃ (-40°F to 149°F) | |
| Storage Temperature | -40℃~+85℃ (-40°F to 185°F) | |
| Humidity | 100% non-condensing | |
| Waterproof and Dustproof | IP67 | |
| Shock | Survive a 2m drop onto the concrete | |
| Voltage | 7-28VDC | |
| Power Consumption | 1.8W | |
| Li-ion battery capacity | 2 x 3400 mAh | |
| Memory | 32 GB | |
| Battery life | 20h | |
| Communication | 1 Serial port (7 pin Lemo) | Baud rates up to 921,600 bps |
| Datalink | Tx/Rx with full frequency range from 410-470MHz | |
| Transmit power: 0.5W, 1W, 2W adjustable | ||
| Air Baud Rate: 9600 / 19200 adjustable | ||
| Range:3-5km | ||
| Protocol type: Transparent/TT450S/South/Mac/SATEL | ||
| WIFI/4G modem | – LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 | |
| – LTE-TDD:B38/B39/B40/B41 | ||
| – WCDMA: B1/B2/B4/B5/B6/B8/B19 | ||
| – GSM: B2/B3/B5/B8 | ||
| Position data output rates | 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz | |
| 2 LEDs | indicating Satellites Tracking and RTK Corrections data | |
| 1 Display | OLED Display | |
| Bluetooth | V 4.0 protocol, compatible with Windows OS and Android OS | |
| Calibration-free IMU integrated for Tilt Survey | Up to 60°tilt with 2.5 cm accuracy | |
| Laser | Range | 10m |
| Accuracy(room temperature) | (3-5)mm + 1ppm | |
| Measuring Frequency | Classic Value: 3Hz | |
| Maximum Value: 5Hz | ||
| Laser Injection Power | 0.9mW~1.5mW | |
| Working Temperature | -20℃~+50℃ | |
| Storage Temperature | -30℃~+60℃ | |
