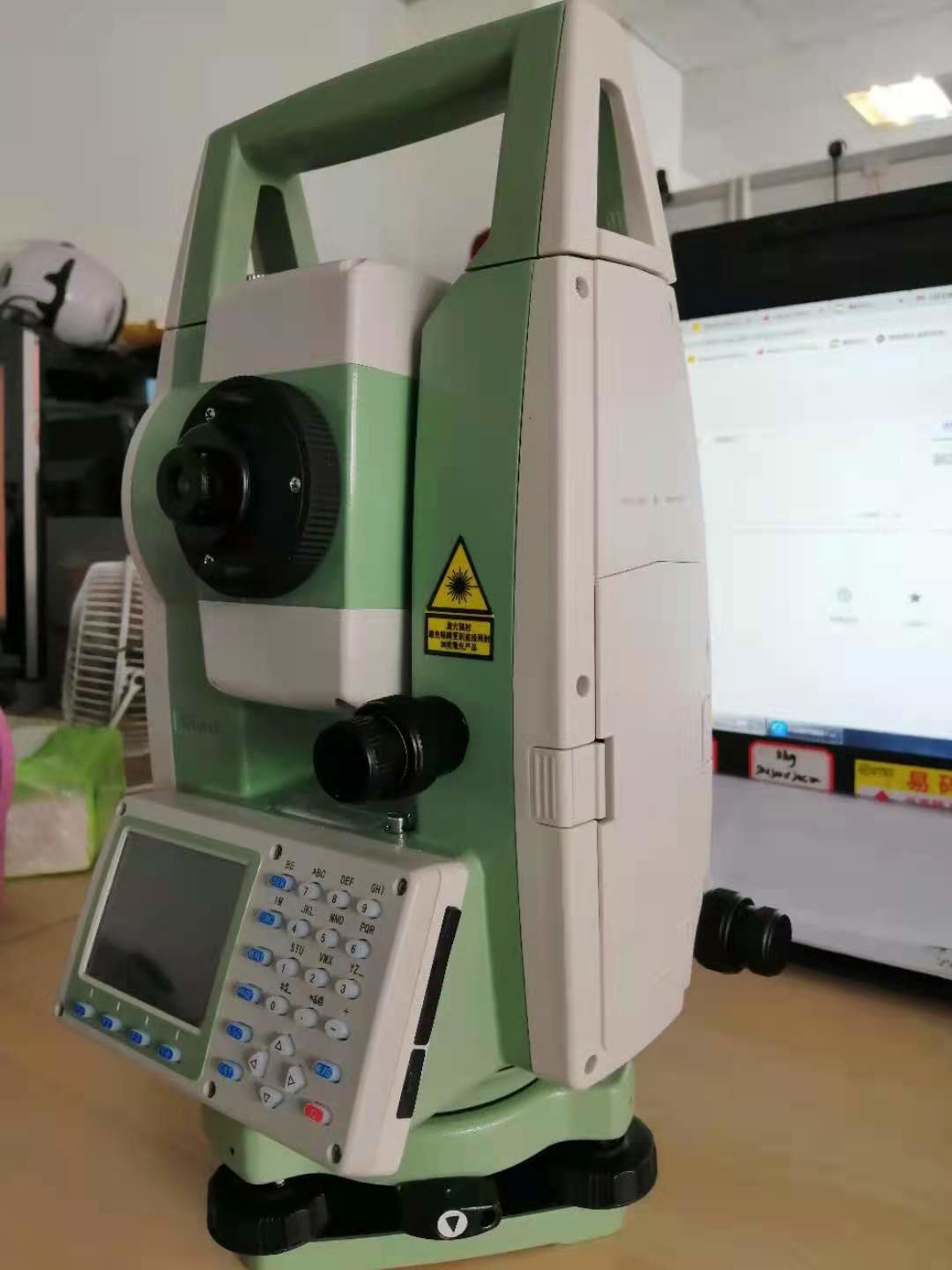

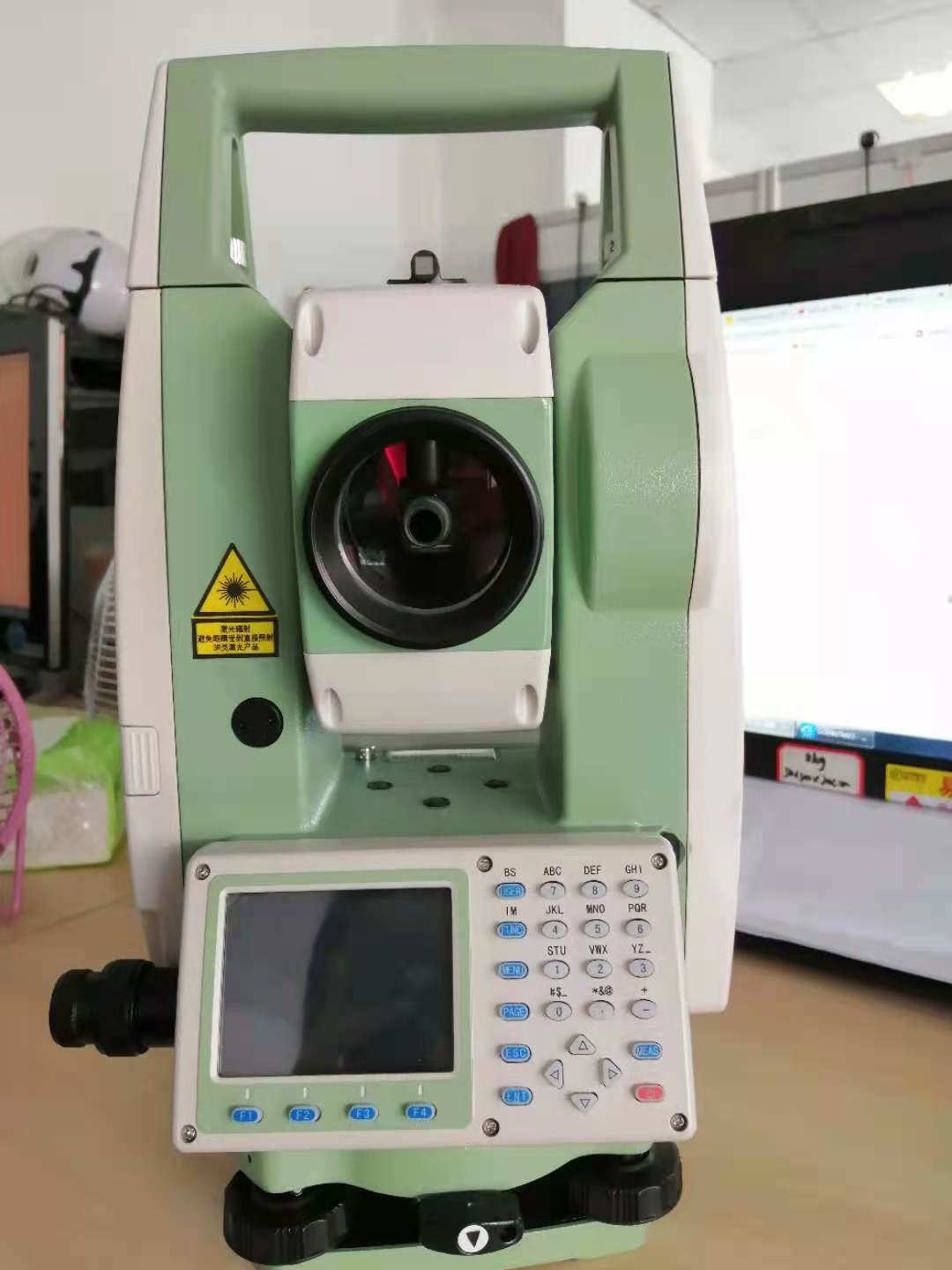

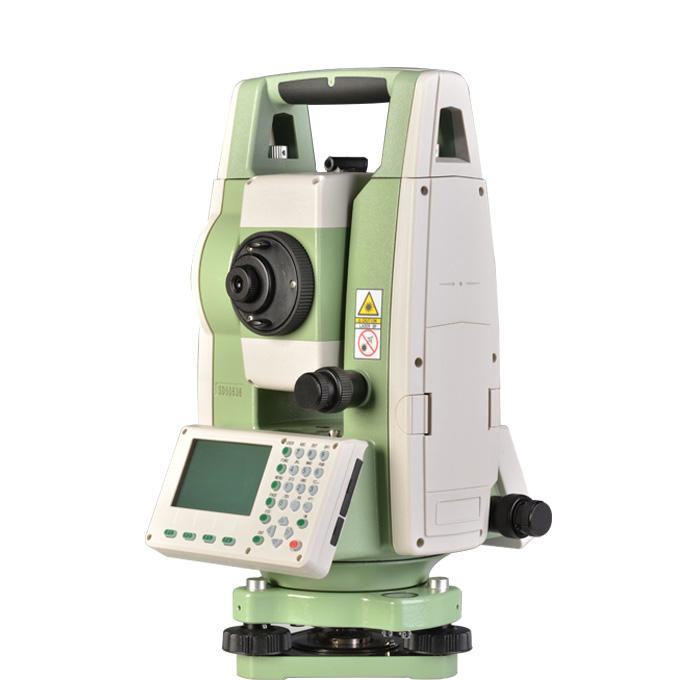

Sanding Total Station 30X Magnification STS-762R10 Total Station
In Stock
¥7,114
In Stock
Description
Detail Information
| Length/Image: | 154mm/Erect | Magnification: | 30x |
|---|---|---|---|
| Field Of View: | 1°30’ | Accuracy: | 2″ |
| Single Prism: | 5000m *1 | Non-Prism: | 1000m*2 |
| Objective Lens Diameter: | Telescope: 45mm; EDM: 50mm | Resolving Power: | 3” |
| Min. Focus: | 1.0m | Accuracy -Prism Mode: | ±(2mm+2ppm X D)m.s.e. *3 |
| Highlight: |
30X Magnification Total Station Survey Equipment, Dual Axis Total Station, USB Total Station Instrument |
||
Product Description
Sanding Telescope: 45mm; EDM: 50mm Total Station STS-762R10 total station price.
| TELESCOPE | |
| Tube Length | 154mm |
| Objective Lens Diameter | Telescope: 45mm; EDM: 50mm |
| Magnification | 30X |
| Image | Erect |
| Field of View | 1°30’ |
| Resolving Power | 3” |
| Min. Focus | 1.0m |
| DISTANCE MEASUREMENT | |
| Single Prism | 5000m *1 |
| Non-Prism | 1000m*2 |
| Accuracy -Prism Mode | ±(2mm+2ppm x D)m.s.e. *3 |
| -Non-Prism Mode | 0-300m:±(3mm+2ppm x D)m.s.e. *3 |
| 300m-600m: ±(5mm+3ppm x D)m.s.e. *3 | |
| Measuring time | fine: 0.3s; tracking: 0.1s *4 |
| Atmospheric Correction | T-P Sensor, Auto Detect and Correct |
| Prism Constant | Manual Input, Auto Correction |
| ANGLE MEASUREMENT | |
| Method | Absolute Encoding |
| Detecting System | H: 2 sides V: 2 sides |
| Min Reading | 0.5”/1”/5”10” selectable |
| Accuracy | 2” |
| Diameter of Circle | 79mm |
| Vertical Angle 0° | Zenith: 0°/Horizontal:0° |
| Unit | 360°/400gon/6400mil |

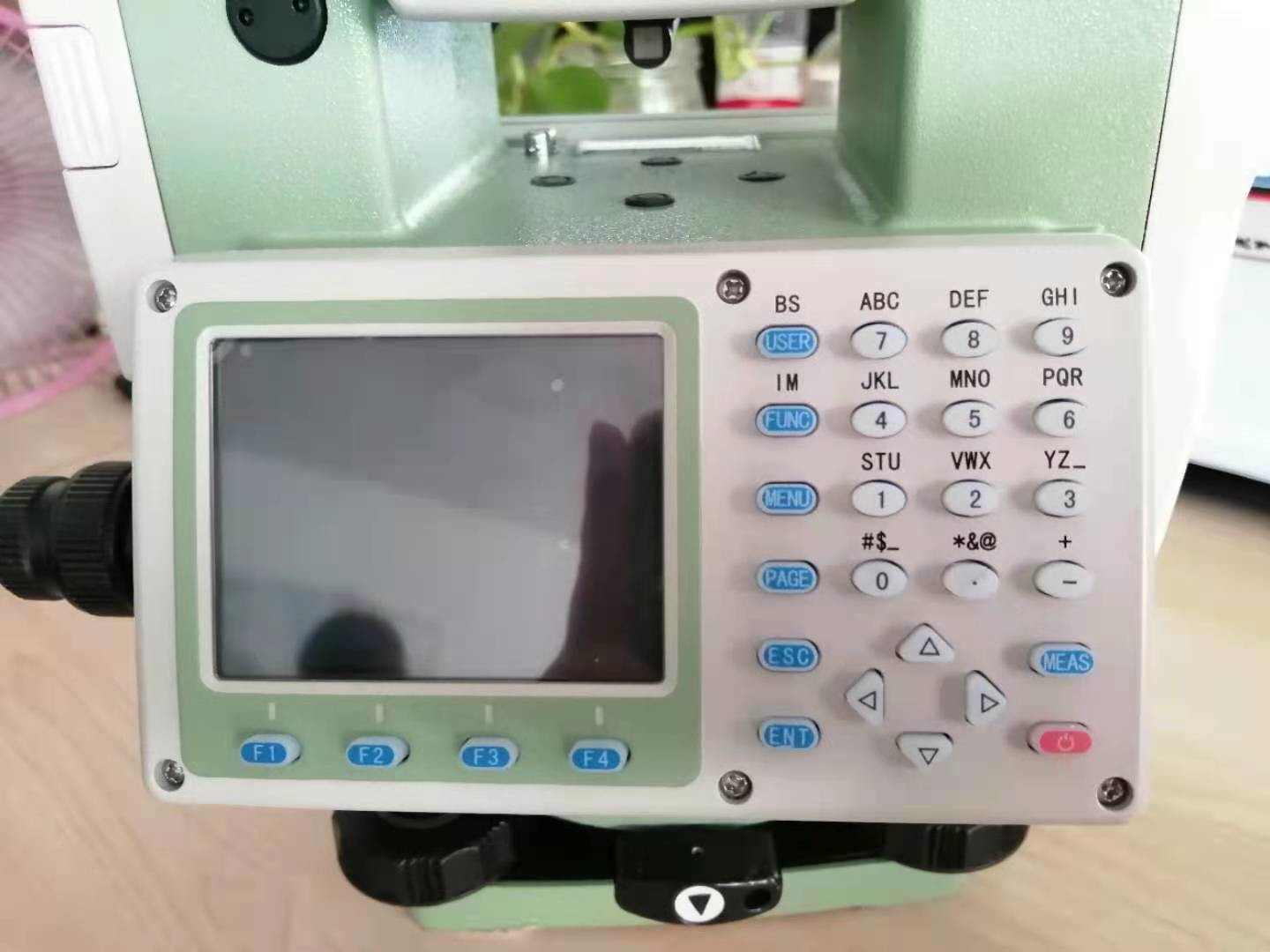

| DISPLAY | |
| Size | 3.5”; 320*240 Dot Matrix |
| No.of Display | 2 Color Screens |
| Keyboard | Alphanumeric |
| TILT CORRECTION | |
| Tilt Sensor | Dual Axis |
| Method | Liquid Electric |
| Range | ±3′ |
| Setting Unit | 1” |
| LEVEL SENSITIVITY | |
| Plate Level | 30”/2mm |
| circular vial | 8’/2mm |
| OPTICAL PLUMMET(OPTIONAL:INTERNAL LASER PLUMMET) | |
| Image | Erect |
| Magnification | 3X |
| Focusing Range | 0.3m ~ ∞ |
| Field of View | 5° |
| DATA STORAGE INTERFACE | |
| Storage | Internal Memory: 4MB; Max.SD card:32GB |
| Data Interface | SD-card/Mini USB/RS232C |
| GENERAL | |
| Laser Class *5 -EDM | Class IIIA |
| -Laser Plummet | Class II |
| Working Temperature | -20°C~ + 50°C |
| Battery Type | Rechargeable Lithium Battery |
| Battery Voltage | DC 7.4V |
| Working Time | 8h |
| Water & Dust Proof | IP55 |

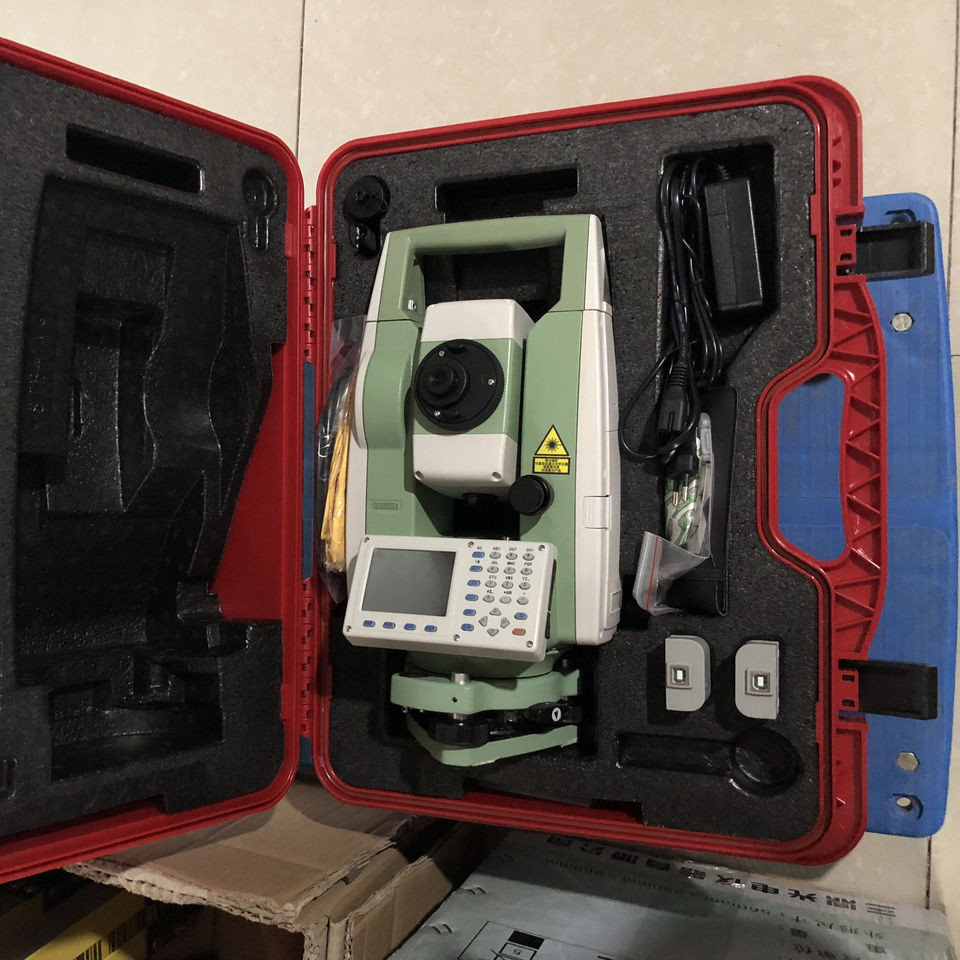

Packaging & Shipping
Our Services
1. Warranty: 12 months warranty is offered for survey equipment. 6 months warranty offered for survey accessory. Warranty comes in effective from the day your receive good.
2. Repair in warranty: We are responsible for supplying new parts for repairing. Round way freight will be charged by us. If it is necessary, product will be required to send back to our service center to be repaired, round way freight is charged by us. Our engineer will repair in your office for special case.
3. Repair out of warranty: We will offer related parts at commercial cost. Freight will be shared by us
4. Training and calibration: Our engineer is qualified for training and calibration for GNSS and Total Station on site. We offer this service to bulk order while customer has requirement.
5. Technical support is offered 24/365.
