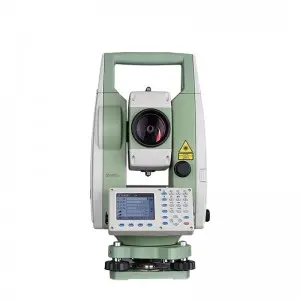

Sanding STS-762R10LB Best Sales for High Quality Total Station 30X Magnification Survey 2000m Reflectorless Total Station
In Stock
€865
In Stock
Description
| Technical Indicators | |
| Instrument model | STS-762R10LB/STS-762R15LB/STS-762R20LB |
| Distance measurement | |
| Single prism | 5000m |
| Prism | 7000m |
| precision | ±(2+2×10-6· D)mm |
| Measure the time | Precision measurement is 0.3 seconds, tracking is 0.1 seconds |
| Ranging Measurement (No Cooperative Target) | |
| Odometry (Kodak Gray, 90% reflectivity) | 1000m/1500m/2000m |
| Reflector (60mm×60mm) | |
| precision | 0~500m:±(3+2×10-6· D)mm |
| 500~1000m:±(5+2×10-6· D)mm | |
| 1000~2000m:±(10+2×10-6· D)mm | |
| Measure the time | 0.3~3 seconds |
| Meteorological corrections | The input temperature and air pressure are automatically corrected |
| Prism constant correction | The input parameters are automatically corrected |
| Angular measurements | |
| Goniometric method | Absolutely |
| Disc diameter | 79mm |
| Readings are reachable | 0.1″/1″/5″ optional |
| precision | 2″ |
| Detection method | Horizontal Disk: Opposite Diameter Vertical Disk: Opposite Diameter |
| telescope | |
| imaging | As |
| Barrel length | 154mm |
| Effective aperture of the objective | Telescope: 45mm Range: 50mm |
| Magnification | 30× |
| Field of view | 1°30′ |
| resolution | 3″ |
| Minimum focusing distance | 1.2m |
| Automatic dual-axis compensator | |
| Compensation system | Dual-shaft liquid photoelectric electronic compensator |
| Scope of work | ±4′ (± 6′ optional) |
| precision | 1″ |
| leveler | |
| Pipe level | 30″/2mm |
| Circular level | 8′/2mm |
| Optical centerer | |
| imaging | As |
| Magnification | 3× |
| Focus range | 0.5m~∞ |
| Field of view | 5° |
| Laser aligner | |
| Alignment accuracy | ± 1.5 mm (at 1.5 m) |
| brightness | It has the function of adjusting the brightness |
| Show section | |
| type | 2.7-inch 240×320 dot matrix bright true color display |
| Digital display | Large: 99999999.999 Small: 1mm/0.1mm optional |
| On-board battery | |
| power supply | Rechargeable lithium battery |
| voltage | DC 7.4V |
| capacity | 3100mWh |
| Continuous working hours | 10 hours |
| Dimensions and weight | |
| size | 192mm×192mm×335mm |
| weight | 5.8kg |
| communication | |
| Data Communications | Built-in Bluetooth is standard |
