RTK GNSS Receiver South S86 With Trimble BD990 Board
In Stock
$4,800.00
In Stock
Description
Detail Information
| Product Name: | RTK GNSS Receiver | Channels: | 220 |
|---|---|---|---|
| GPS: | L1C/A, L2C, L2E, L5 | GLONASS: | L1C/A, L1P, L2C/A(Glonass M Only), L2P |
| Galileo: | E1, E5A, E5B | BDS: | B1, B2, B3 |
| SBAS: | L1 C/A , L5 | ||
| Highlight: | bluetooth rtk gps receiver
, trimble gnss receiver |
||
Product Description

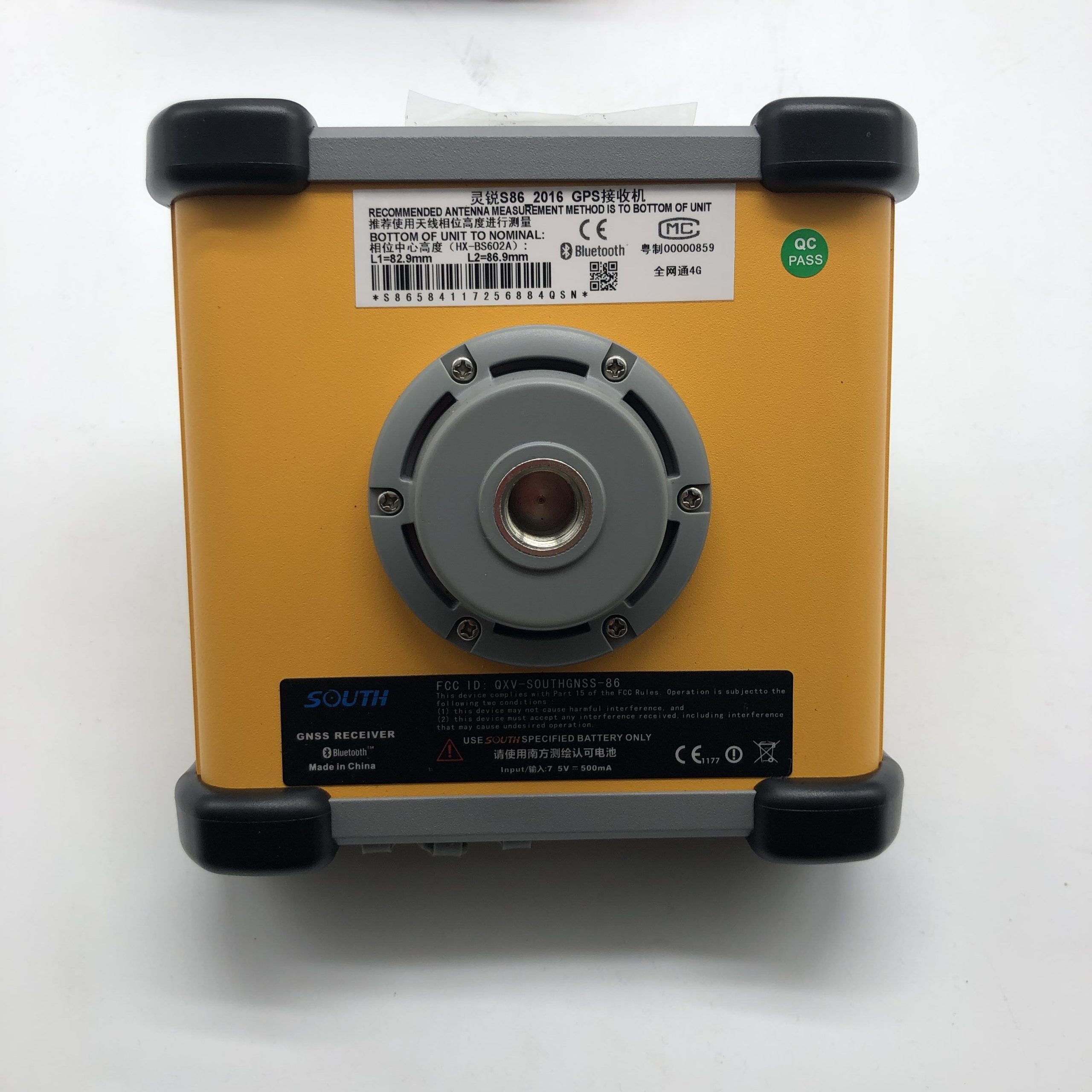

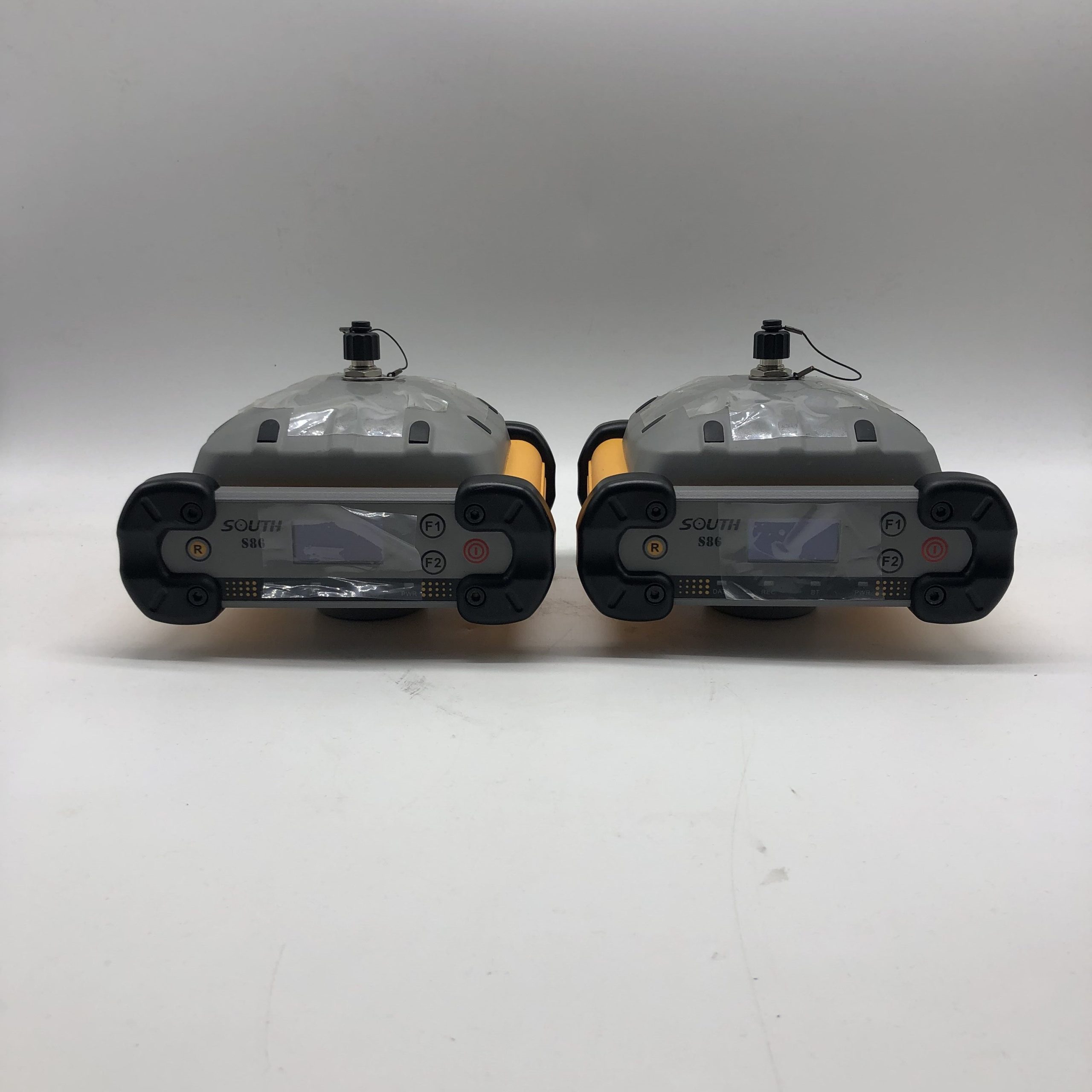

RTK GNSS receiver South S86 with Trimble BD990 board
| MODEL | S86 |
| Tracking Capability | |
| Number of Channels | 220 channels |
| Tracked Signals: | GPS: L1C/A, L2C, L2E, L5 |
| GLONASS: L1C/A, L1P, L2C/A(Glonass M only), L2P | |
| Galileo: E1, E5A, E5B | |
| BDS: B1, B2, B3 | |
| SBAS: L1 C/A , L5 | |
| Positioning Accuracy | |
| Code differential GNSS positioning(DGPS) | |
| Horizontal | ±0.25 m + 1 ppm RMS |
| Vertical | ±0.50 m + 1 ppm RMS |
| SBAS differential positioning accuracy | Typically <5 m |
| Static GNSS surveying | |
| Horizontal | ±2.5 mm + 0.5 ppm RMS |
| Vertical | ±5.0 mm + 0.5 ppm RMS |
| Real Time Kinematic surveying[RTK] | |
| Horizontal | ±8 mm + 1 ppm RMS |
| Vertical | ±15 mm + 1 ppm RMS |
| Initialization time | Typically < 8seconds |
| Initialization reliability | Typically > 99.9% |
| Hardware Physical | |
| Size | 16.5 cm x 16.8cm x12.2 cm |
| Weight | 1.85 kg with battery |
| Operating Temperature | -45ºC to +60ºC |
| Storage Temperature | -55ºC to +85ºC |
| Humidity | 100%,condensing |
| Dust/Water Protection | IP67 at closing all connector caps. Protected agaist temporary immersion up to 1m depth. |
| Shock and vibration | Designed to survive a 2.5m natural fall onto concrete. |
| Electrical | |
| Power 12 to 15V DC external power input with over-voltage protection | |
| Rechargeable, removable 7.2V,8.8Ah Lithium-ion battery in receiver | |
| Battery life | 20 hours from standard supply(varies with temperature and working mode) |
| Operation system | |
| Button | Four buttons |
| LCD | 1.54 OLED, 128 x 64 |
| Communications and Data Storage | |
| Internal Radio | |
| Frequency | 410~470MHz |
| Transmitting power | 0.5W/2W adjustable |
| Working range | 3~5km |
| External Radio | |
| Frequency | 410~470MHz |
| Transmitting power | 5W /35W adjustable |
| Working range | 8~30km |
| Cellular | WCDMA3.5G, GPRS/EDGE(option CDMA2000/ EVDO 3G) |
| Bluetooth | Bluetooth 2.1+EDR/ Bluetooth 4.0 BLE |
| Data storage: | |
| Internal Memory | 4 GB |
| External Memory | Micro SD card (Max. 32GB) |
| Data Formats: | |
| 1Hz positioning output, up to 20Hz | |
| CMR, CMR+, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2 | |
