Pentax ETH502 Electronic Digital Theodolit High Precision measuring instrument
In Stock
¥3,201
In Stock
Description
Detail Information
| Brand: | Pentax | Manigfication: | 30X |
|---|---|---|---|
| Model Number: | ETH502 | Objective Aperture: | 45 Mm |
| Accuracy: | 2″ | Focusing Range: | 0.5 M ~ ∞ |
| Dust & Water Protection: | IP44 | Ambient Temperature For Operation: | -20°C – +50°C |
| Highlight: | total station theodolite
, micro optic theodolite |
||
Product Description

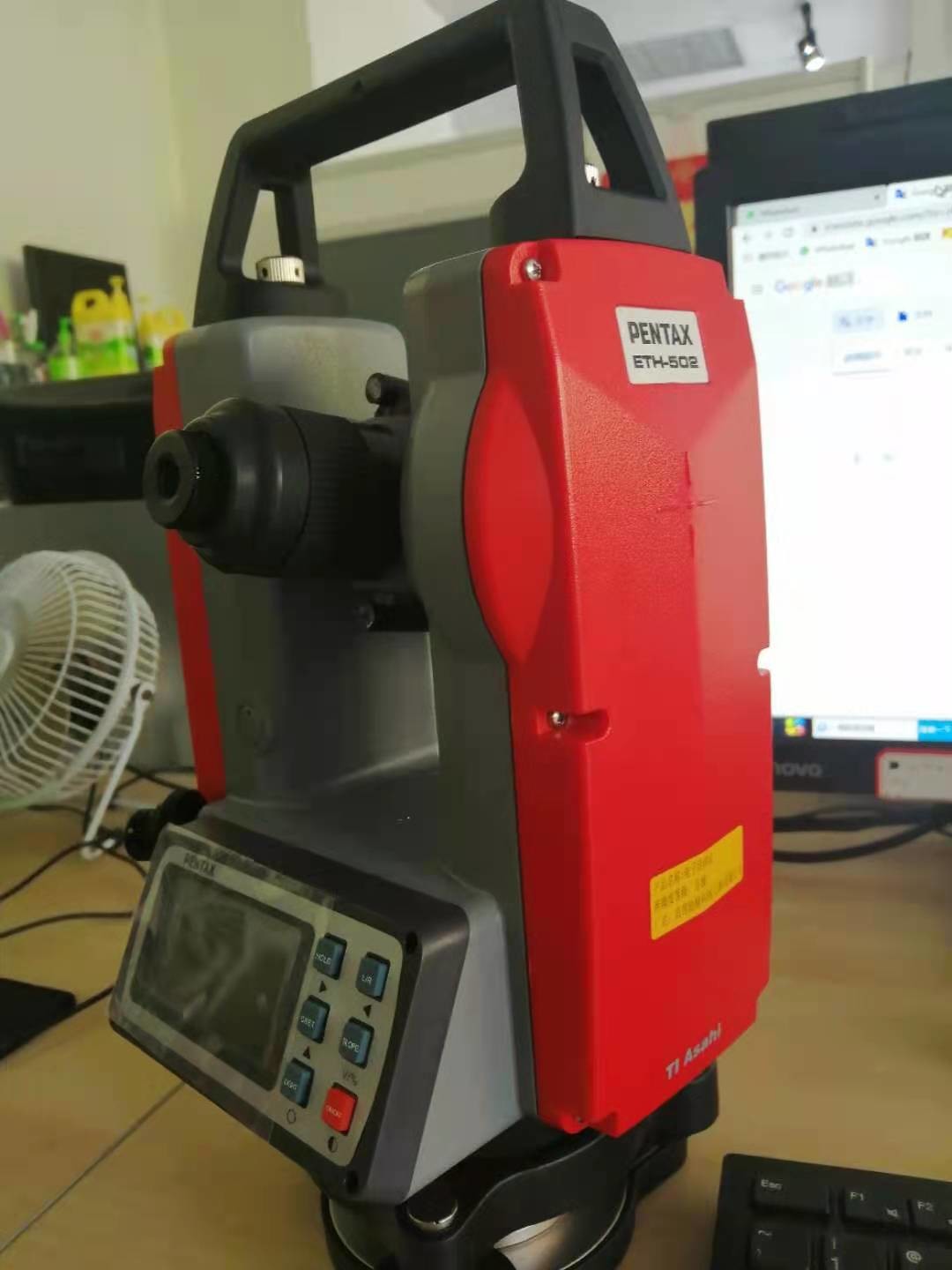

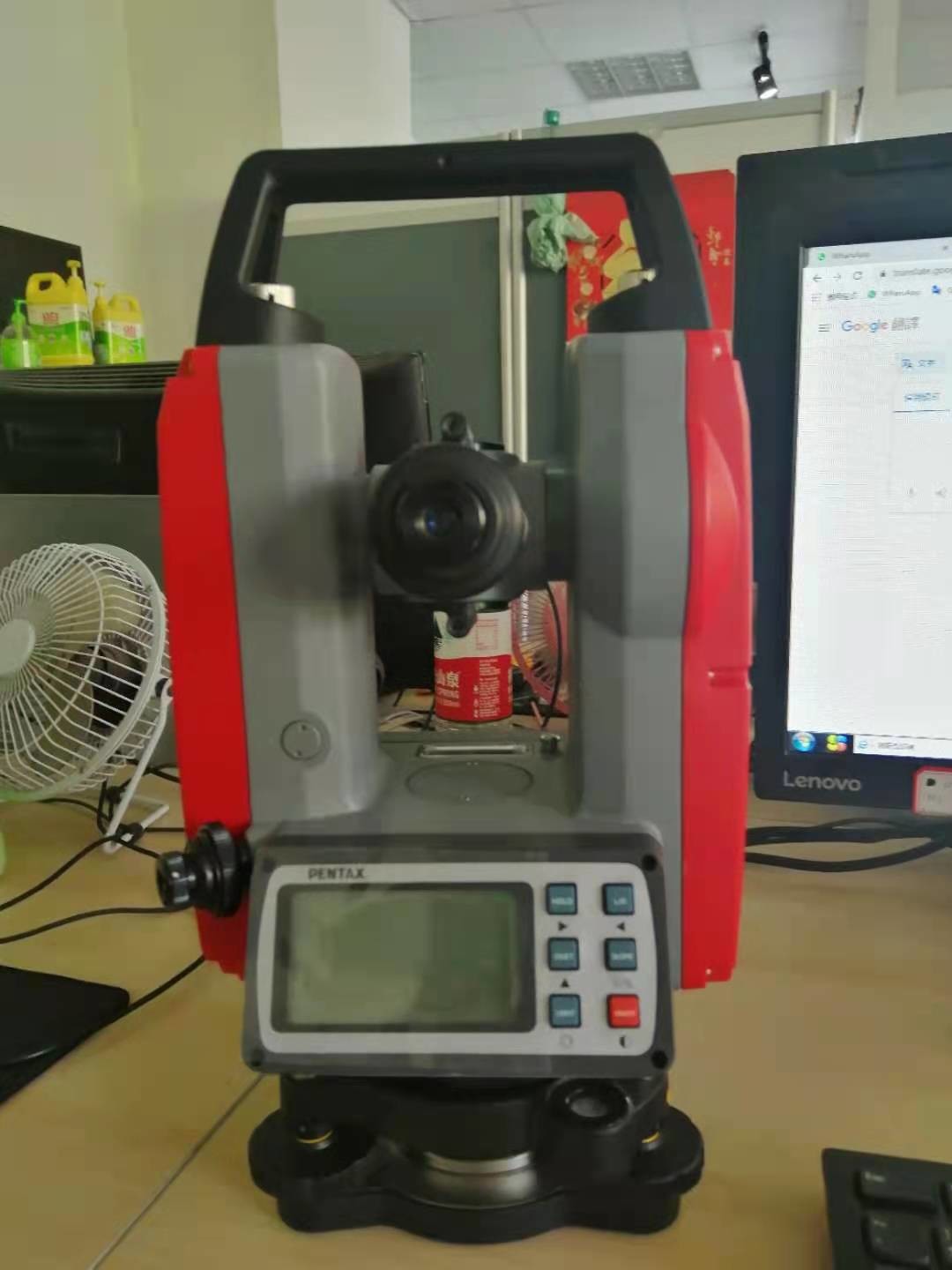

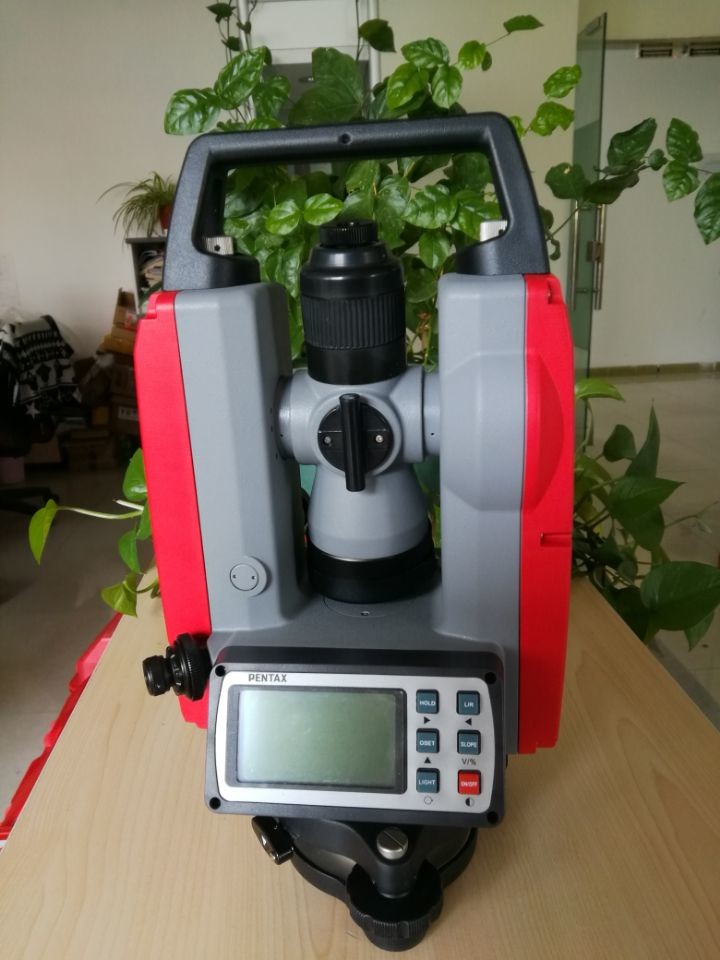

Pentax ETH502 Electronic Digital Theodolit High Precision measuring instrument
Detail Specification:
PENTAX ETH502 THEODOLITE
Detailed Product Description:
Pentax ETH-502 Electronic Theodolite -Accuracy 2″ .
Key Features include
· Large easy to read-display
· Zero set and reverse angle display
· A row of soft keys allows simple and fast operation.
· A large display (LCD) is incorporated on both sides of the instrument. Both vertical and horizontal angles are displayed in degrees or gons.
· All the models have a bright 30x magnification telescope which ensures sharp and clear images even in poor light conditions.
· Clockwise and counter-clockwise angle measurement
· Conversion of the vertical angle to a percentage grade
· Zero setting of the horizontal angle at any position
· Horizontal angle ‘Hold key function
· Clockwise and counter-clockwise angle measurement
· Conversion of the vertical angle to a percentage grade
· Zero setting of the horizontal angle at any position
· Horizontal angle ‘Hold key function
· Powered by Alkaline batteries
Applications
· Setting out right angles and checking plumb
· Alignment measurements
· Anchor bolt layout
· 90° layout
| Electronic Theodolites ETH-500 | Series Specification | ||||
| Model | ETH-502 | ETH-505 | ETH-510 | ETH-520 | |
| Telescope | Imaging | Erect image | |||
| Objective aperture | 45 mm | ||||
| Magnification | 30 x | ||||
| Resolution | ≤ 3″ | ||||
| Field of view | 1° 20′ | ||||
| Shortest focusing distance | 1.35 m | ||||
| Stadia multiplication constant | 100 | ||||
| Stadia addition constant | 0 | ||||
| Angle Measuring | Angle measuring mode | Absolute encoder | |||
| Angle measuring accuracy | 2″ | 5″ | 10″ | 20″ | |
| Angle display | 1″/5″ | 1″/5″ | 5″/10″ | 10″/20″ | |
| Angle unit | 360°/400G | ||||
| Compensator | Tilt sensor | Automatic vertical compensation | |||
| Tilt compensator | Yes | Yes | No | No | |
| Soft switch | ON/OFF | ON/OFF | – – | – – | |
| Compensation range | ± 3′ | ||||
| Display unit | Two-sided | Two-sided | |||
| Optical plummet Image | Erect | Erect | |||
| Magnification | 3 x | ||||
| Angle of vision | 3° | ||||
| Focusing range | 0.5 m ~ ∞ | ||||
| Sensitivity of tubular vial mm | 30″/2 | 30″/2 | 40″/2 mm | 40″/2 mm | |
| Sensitivity of circular vial | 8’/2 mm | ||||
| Dust & Water Protection | IP44 | ||||
| Type of base | Detachable | ||||
| Power supply | Battery | 4 x single three (AAA) type dry battery | |||
| Ambient temperature | For operation | -20°C – +50°C | |||
| Weight | Instrument | 4.5 kg | |||
| Measurements | Carrying case | 1.9 kg | |||
| Instrument | W 175 mm x L 170 mm x H 334 mm | ||||
| Carrying case | W 330 mm x L 450 mm x H 220 mm |
Packaging & Shipping
Our Services
1. Warranty: 12 months warranty is offered for survey equipment. 6 months warranty offered for survey accessory. Warranty comes in effective from the day your receive good.
2. Repair in warranty: We are responsible for supplying new parts for repairing. Round way freight will be charged by us. If it is necessary, product will be required to send back to our service center to be repaired, round way freight is charged by us. Our engineer will repair in your office for special case.
3. Repair out of warranty: We will offer related parts at commercial cost. Freight will be shared by us
4. Training and calibration: Our engineer is qualified for training and calibration for GNSS and Total Station on site. We offer this service to bulk order while customer has requirement.
5. Technical support is offered 24/365.
