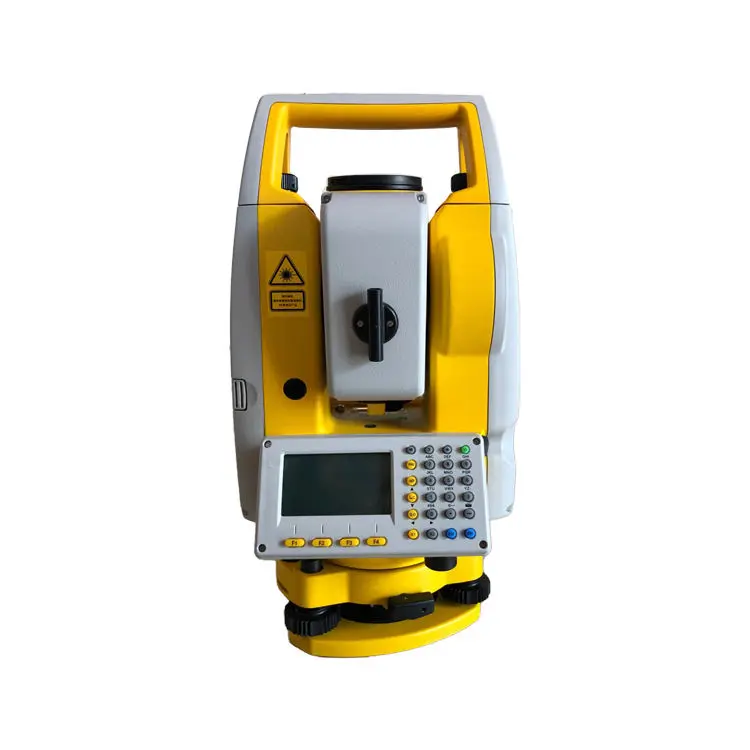

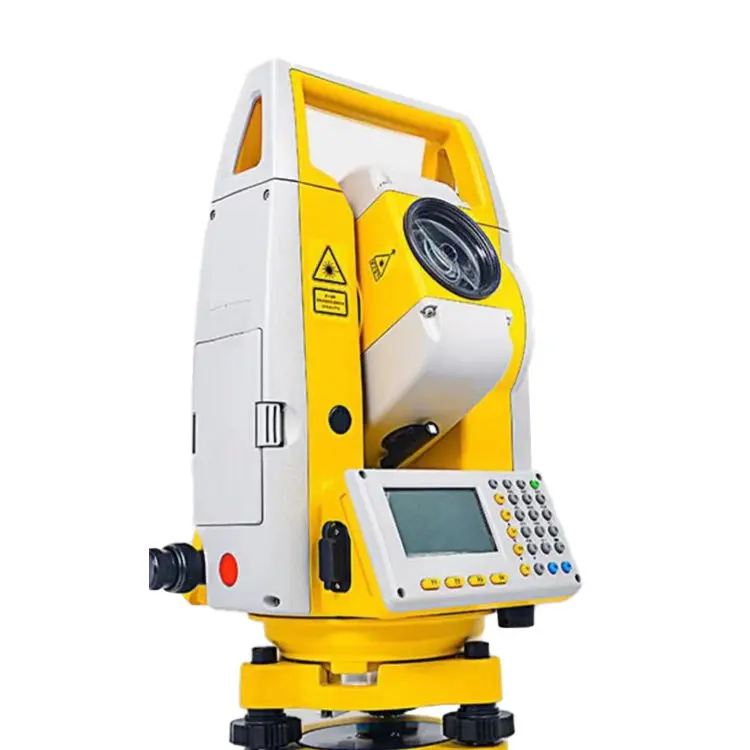

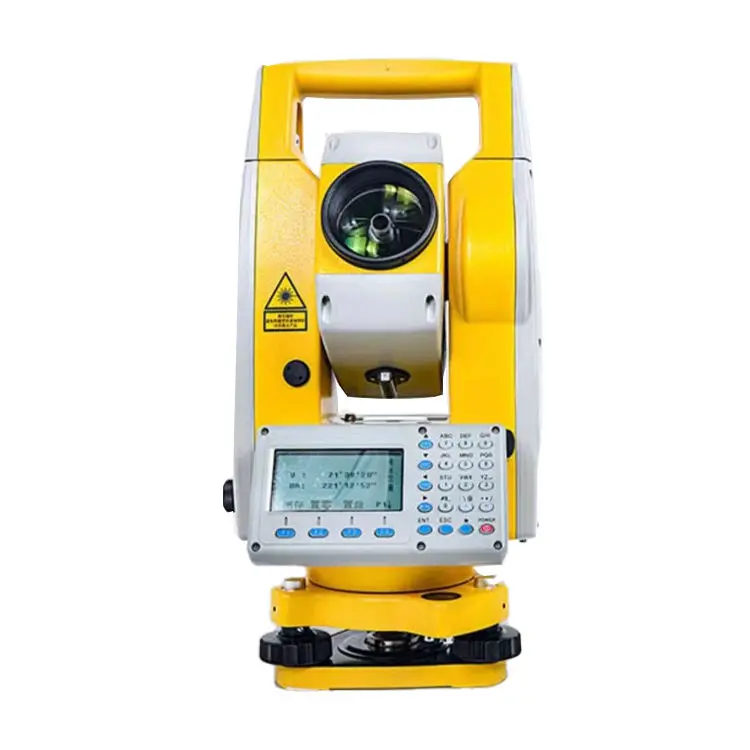

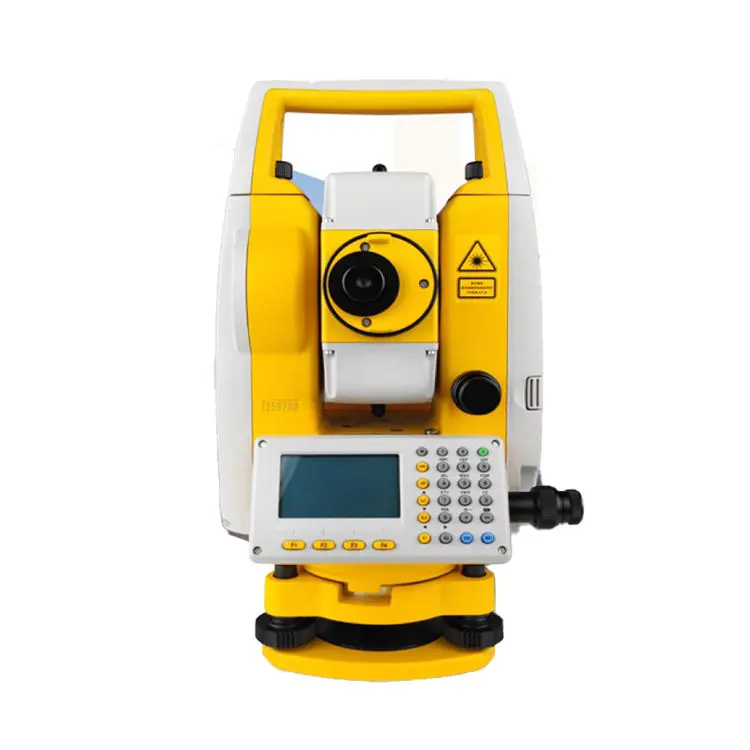

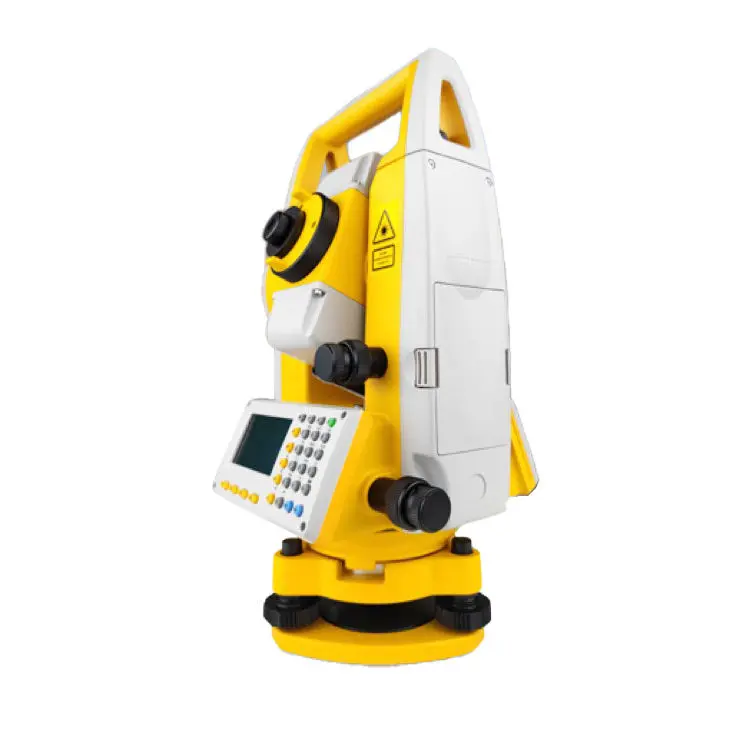

NTS-332R10 Reflectorless Total Station Surveying Equipment Single Prism 5000mTotal Station
In Stock
¥7,114
In Stock
Description
| Model | NTS-332R10 | |
| Distance measurement | ||
| The maximum distance (Good weather) |
Single prism | 5000M |
| A reflective sheet | 1000M | |
| no prism | 1000M | |
| Digital Display | Maximum: 999999999.999 Minimum: 1MM | |
| Precision | +(2mm+2*10-6·D) | |
| Accuracy | 2+2PPM | |
| Mirror-free distance measurement (no cooperating target) | ||
| Measuring range (Kodak gray, 90% reflectance) | 1000m | |
| precision | 0-300m 3+2 300-600m 5+2>600m 10+2 | |
| Mirrorless measurement time | Continuous 0.35s. tracking 0.2s, single time less than 1.2s | |
| Prism measurement time | Continuous 0.35s tracking 0.2s, single time less than 1.2s | |
| weather correction | Input parameters are automaticallv modified | |
| Prism constant modification | Input parameters are automatically modified | |
| Angle measurement | ||
| Angle measurement method | absolute encoding | |
| Code disc diameter | 79MM | |
| Minimum reading | 1″/5″Optional | |
| Accuracy | 2″ | |
| Detection method | Horizontal plate: opposite diameter Straight plate: opposite diam eter |
|
| Telescope | ||
| Imaging | Erect | |
| Tube length | 154MM | |
| Lens effective aperture | 45MM EDM:50MM | |
| Field of view | 1Degree30Second | |
| Resolution | 3″ | |
| Minimum focusing distance | 1M | |
| Automatic vertical compensator | ||
| System | Dual axis liquid electric | |
| Scope of work | +/-6′ | |
| Accuracy | 1″ | |
| Spirit level | ||
| Vial | 30″/2MM | |
| Circular level | 8′/2MM | |
| Laser plummet | The Laser precision :+/-M | |
| Optical Plummet | ||
| Imaging | Erect | |
| Magnification | 30X | |
| Adjustment range | 0.3M To infinity | |
| Field of view | 5 degree | |
| Display section | ||
| Type | Dual-side | |
| Mechanical battery | ||
| Power supply | Rechargeable nickel-Metal hydride batteries | |
| Voltage | DC6V | |
| Continuous working time | 8 Hours | |
| Size and weight | ||
| Size | 206*180*353MM | |
| Weight | 5.4Kg | |
