Digital levels with industry-leading accuracy
Engineered and manufactured by the industry leader of digital levels, the new Leica LS Digital Levels offer experienced measuring professionals automated comfort and reliable accuracy while measuring any demanding levelling project for roads, railways, bridges or in authoritative first order levelling networks.
For trusted surveyors and measuring professionals, getting a full day’s worth of highly precise levelling measurements is not only stressful but an unusually complex and redundant job.
The Leica LS10 and LS15 digital levels give a welcome chance to alleviate demanding levelling tasks. Automated functions and industry-leading 0.2mm amd 0.3mm accuracy allow users to easily demonstrate their measuring skills while effectively completing any project. Just point at your target and with one button press, all steps of levelling will be completed with automated ease.

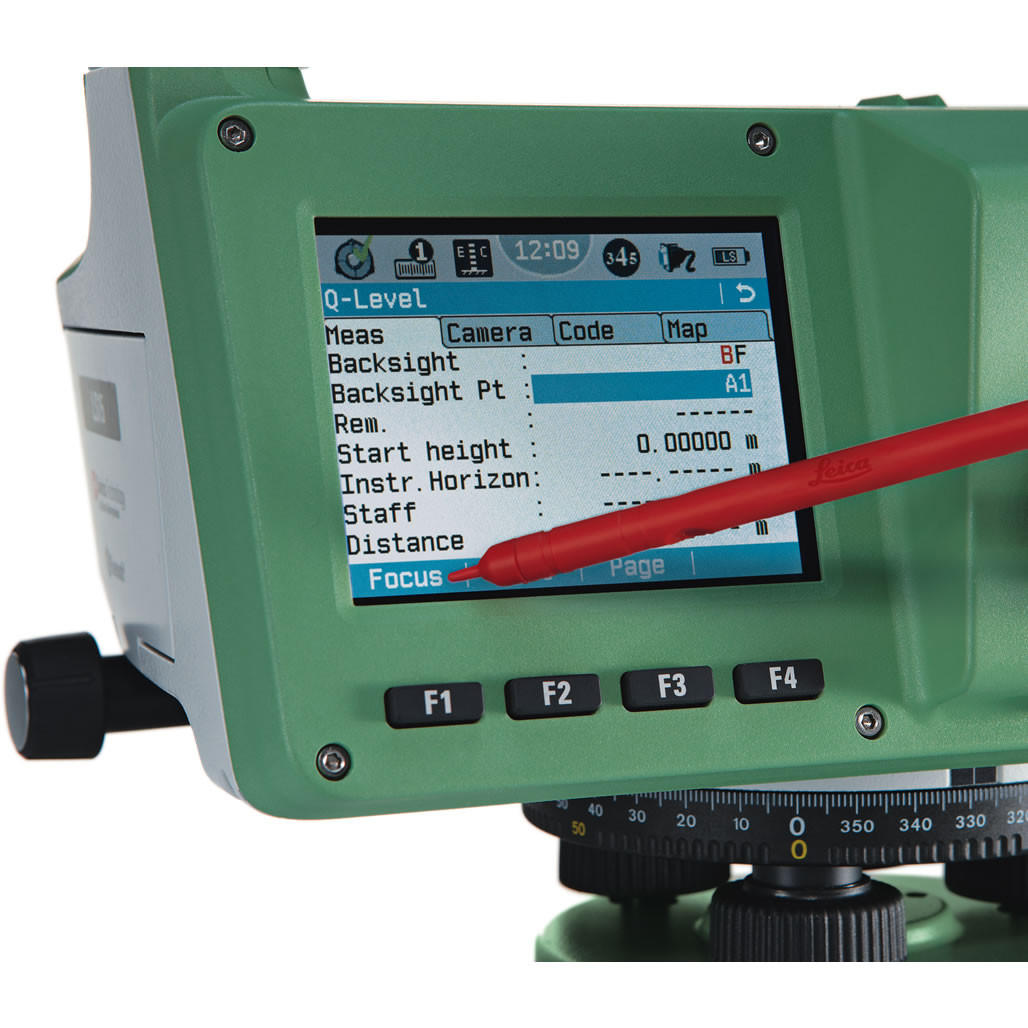

From autofocus to touchscreen displays with clean layouts, the entire measurement process is made more efficient with LS10 and LS15 digital levels. Common levelling errors, like misreading the staff or transcription mistakes, are worries of the past. Providing the most reliable results from immediately understandable line flows with image-supported colour visuals, these levelling solutions make the professional’s daily tasks a more enjoyable experience.
The Leica LS levels offer:
- Highest accuracy
- Efficiency of work
- Field experience
- Digital camera aiming
- Autofocus efficiency
- Quick setup

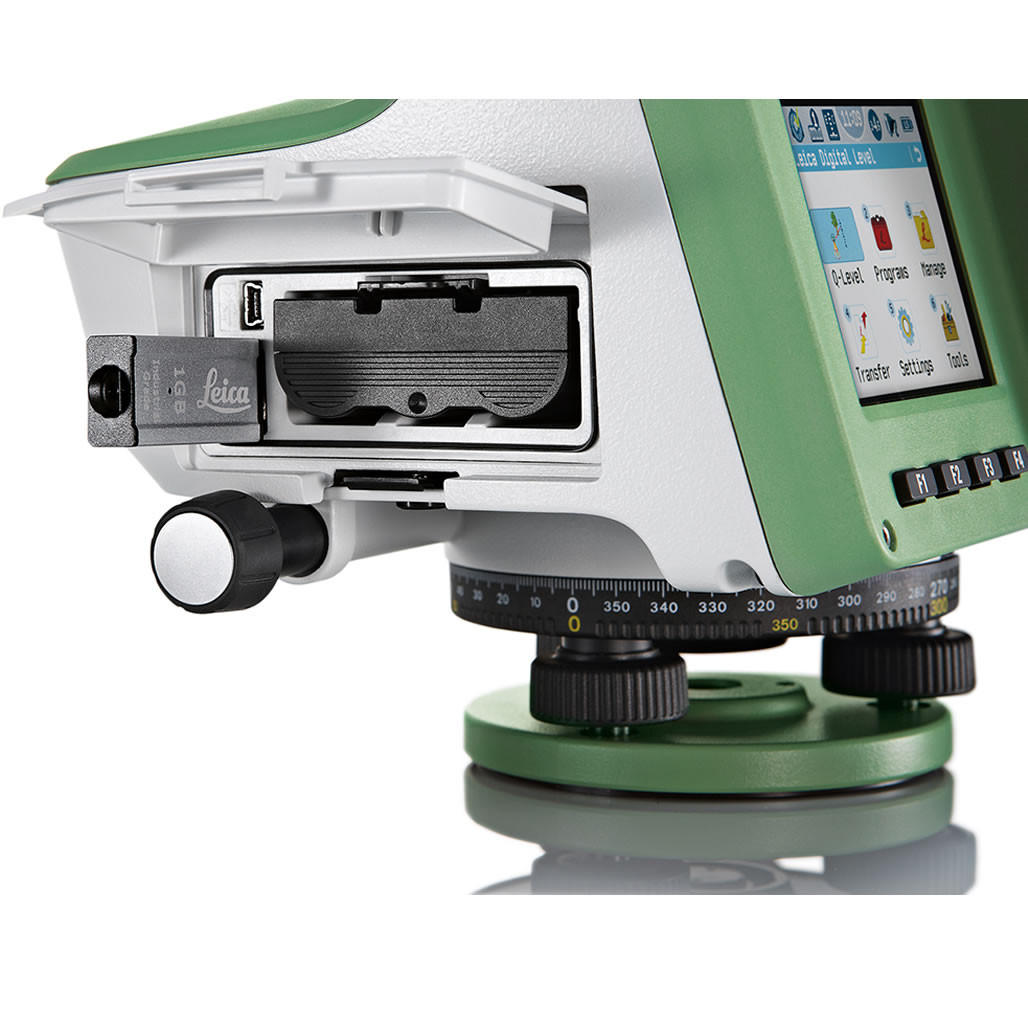

- Easy data transfer
- Use standard invar staff
Includes

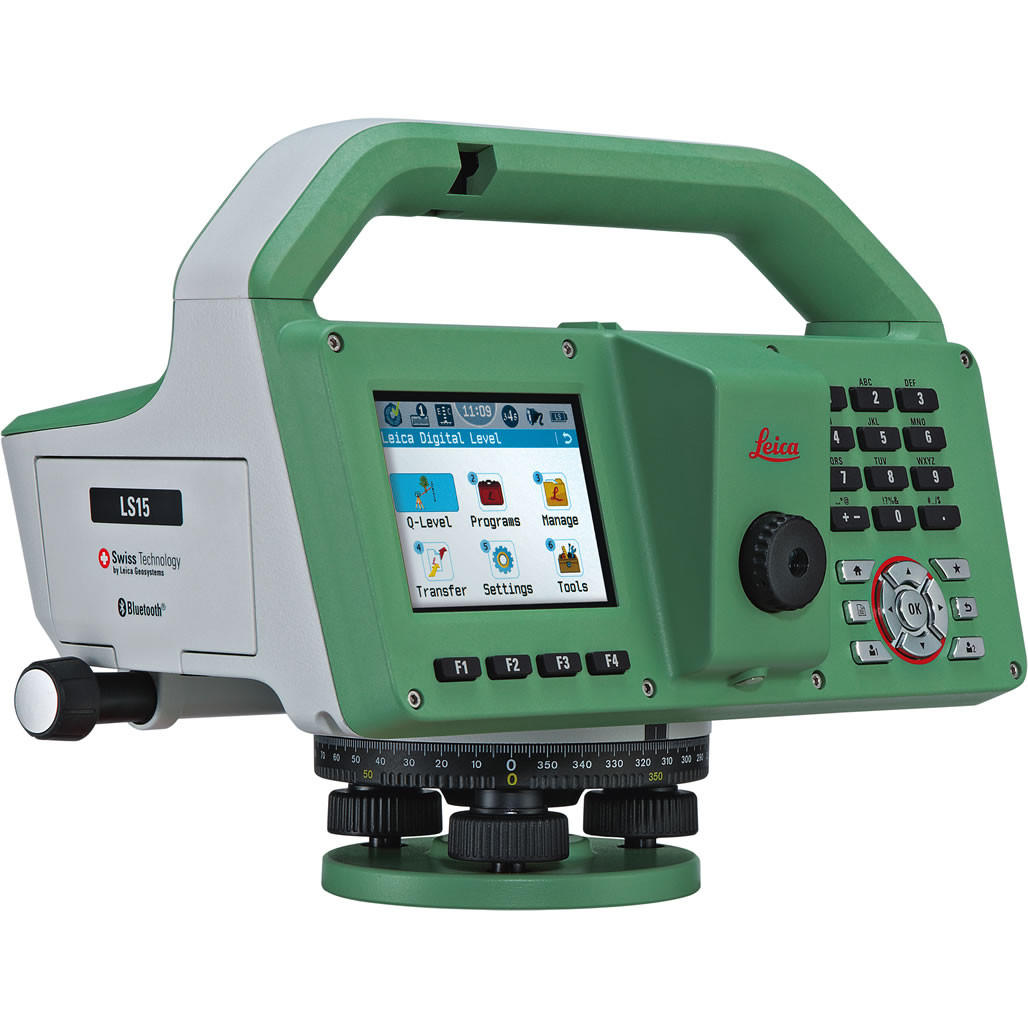

Leica LS15 Digital Level
Standard Levelling Applications
USB Memory Stick
Battery & Single Charger
Sunshade
Rain Cover
Carry Case
Quick Guide
Calibration Certificate – 1 Year
| Leica LS Digital Level Comparison Table |
Leica LS10
|
Leica LS15
|
| Height Accuracy using Standard Invar Staff |
0.3 mm
|
0.2 mm, 0.3 mm
|
| Height Accuracy using Standard Staff |
1.0 mm
|
1.0 mm
|
| Distance Accuracy |
15 mm at 30 m
|
15 mm at 30 m
|
| Measurement Minimum Range |
1.8 m
|
1.8 m
|
| Measurement Maximum Range |
110 m
|
110 m
|
| Measurement Time |
Typically 2.5 sec
|
Typically 2.5 sec
|
| Autofocus Working Range |
1.8 m to infinity
|
|
| Autofocus Time to Focus |
Typically 4 sec
|
|
| Camera Field of View |
6° x 4.8° (7.7° diagonal)
|
|
| Camera Frame Rate |
Up to 20 frames per second
|
|
| Camera Focus |
3 m to infinity
|
|
| Digital Compass Accuracy |
3 gon / 2.7°
|
|
| Compensator Working Range |
± 10‘
|
± 10‘
|
| Compensator Accuracy | ||
| Compensator Magnetic Field Sensitivity |
≤ 1″
|
≤ 1″
|
| RS232 / USB |
Yes
|
|
| Bluetooth® |
Yes
|
Yes
|
| Mini USB |
Yes
|
Yes
|
| Internal Memory |
30,000 measurements
|
30,000 measurements
|
| USB Stick |
Yes
|
Yes
|
| Display |
3.6 inches, QVGA, colour, touch
|
3.6 inches, QVGA, colour, touch
|
| Telescope Magnification |
32x
|
32x
|
| Minimum Focusing Distance |
0.6 m
|
0.6 m
|
| Electronic Level Bubble |
Working range 0.07 gon / 0.063°
Accuracy6 0.015 gon / 0.013° |
|
| Weight (including battery) |
3.7kg
|
3.9kg
|
| Internal Battery / Operating Time |
Exchangeable Lithium-Ion / 12 h
|
Exchangeable Lithium-Ion / 12 h
|
| External Ppower |
12.8 V DC (10.5-18 V)
|
|
| Working Temperature Range |
-20 °C to +50 °C
|
-20 °C to +50 °C
|
| Dust / Water (IEC 60529) |
IP55
|
IP55
|
| Humidity |
95%, non-condensing
|
95%, non-condensing
|
