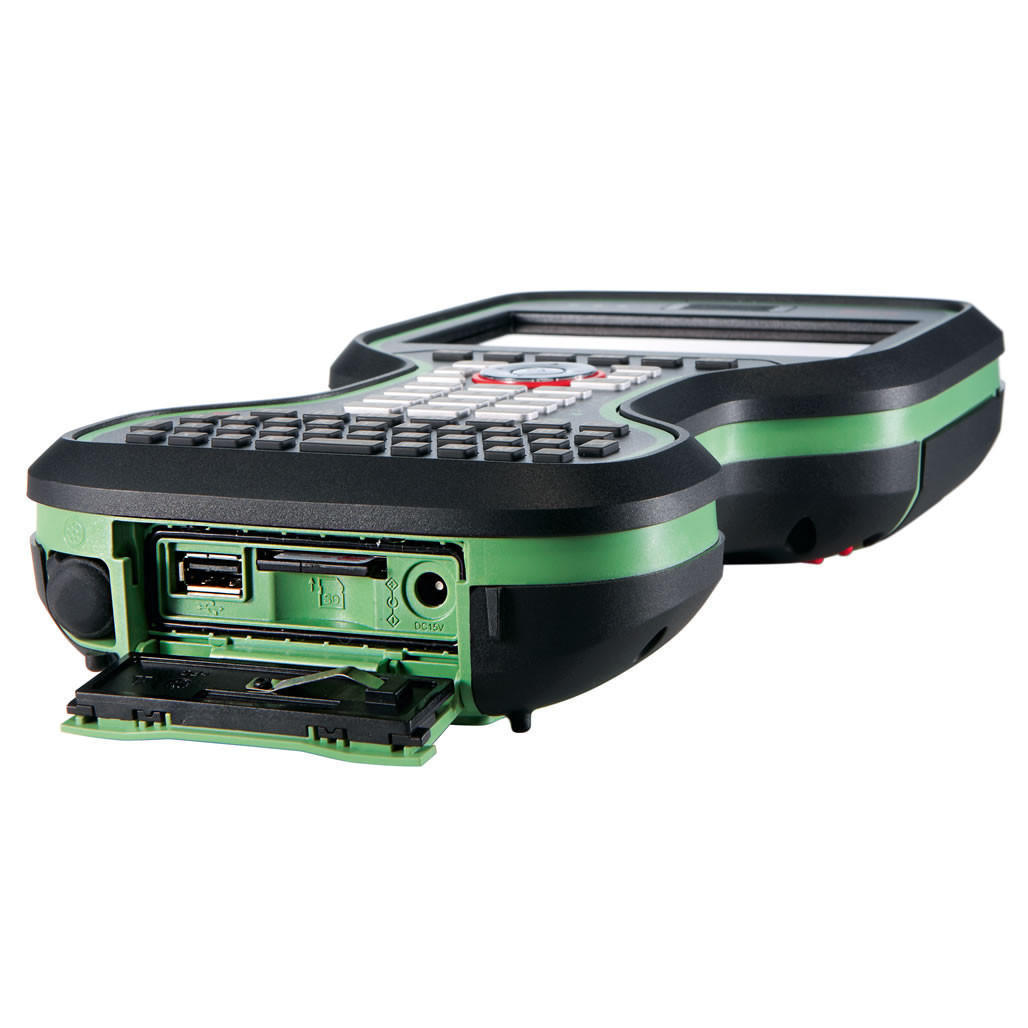

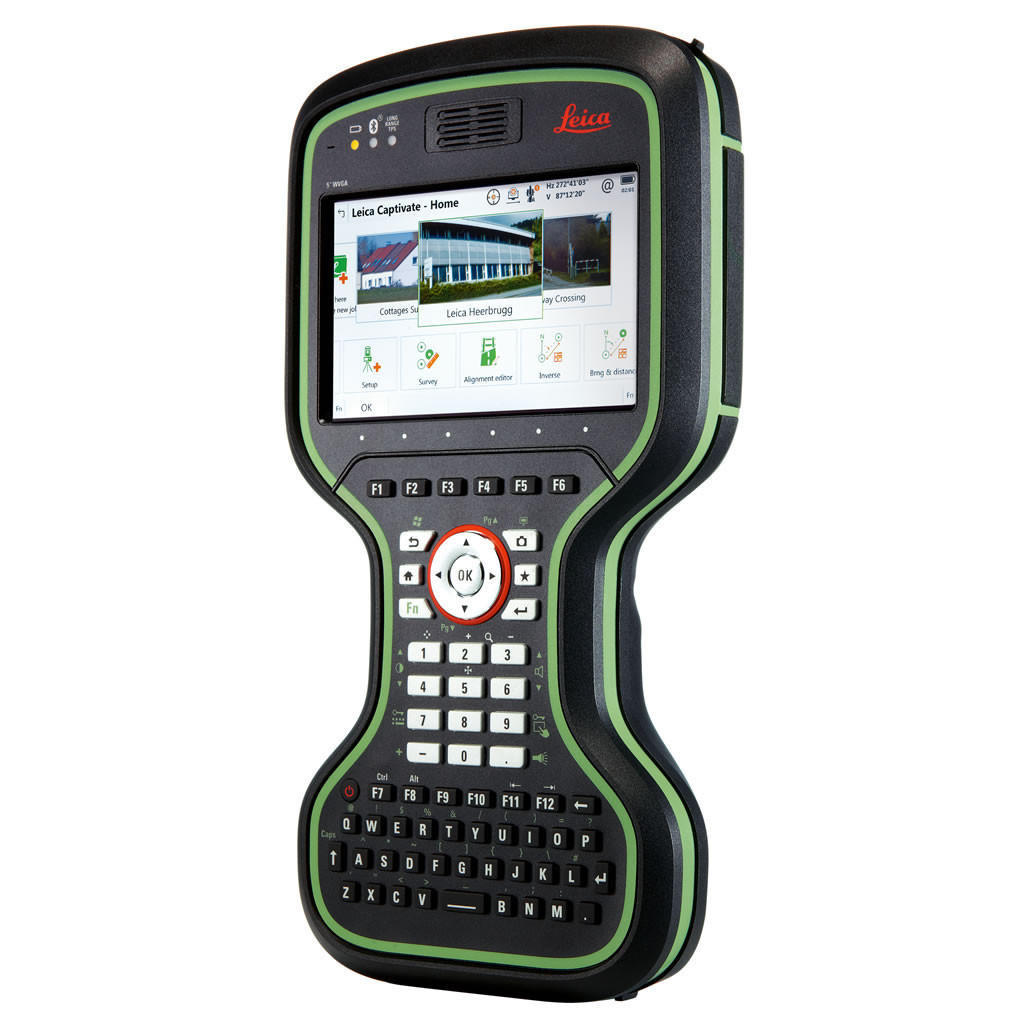

Leica CS20 LTE 4G Field Controller Package

Description

Leica CS20 LTE 4G Long Range Bluetooth Controller Package

Equipment List:

971177 Leica CS20 LTE 4G Field Controller
954518 Leica GEB334 Battery x2
767856 Leica MSD1000 SD Memory Card 1GB
767880 Leica GHT63 Pole Clamp
807157 Leica GHT66 Holder Plate
813781 Leica SPF05 Screen Foil
937437 Leica GVP740 Container

Applications

Leica Captivate Base (Measure & Stakeout CS)
Leica Captivate Worksite+ for CS20 (Ref Line / DTM Stake / Volume Calculation)

Support & SW/FW Maintenance

Leica Viva CS (CS20) Basic Customer Care Package (CCP)
Direct Telephone & Email Support
Firmware Updates (Performance Improvements, App Enhancements & New Features)

Works With:

CS20 package works with Leica TS15 and TS16 Total Stations and Leica GS07 / GS16 / GS18 GPS systems.

Don’t just see data, experience data

Never before has measurement technology provided such an intuitive experience or simple navigation. Incredibly easy software, instruments you trust, help that is only a click away – these combine to form an all-encompassing solution for your most challenging demands.

Leica Captivate is the new software for the renowned Leica Nova and Viva measurement instruments. With familiar apps and touch technology, you can now capture and manage complex data with little more than a simple swipe.

Dominant performance through seamless integration

The next generation of Leica Viva and Nova measuring instruments become the world’s first self-learning total stations and MultiStation with Leica Captivate. Transforming the Leica Viva GNSS experience, this engaging software joins ultimate GNSS receiver innovation with an industry-first 3D user immersion. Leica Captivate modernises the Leica Nova scanning experience, for the first time merging the overlay of measured points, 3D models and point clouds into a single view.

Infinitely bridging the field to the office

While Leica Captivate captures and models data in the field, Leica Infinity processes the information back in the office. A smooth data transfer ensures the project stays on track. Leica Captivate and Leica Infinity work in conjunction to join previous survey data and edit projects faster and more efficiently.

Tough and Robust

High protection IP68
Awarded an Honourable Mention in the Red Dot Awards: Product Design
Expansion pack allows future modules to be used

Large Screen

5“ WVGA colour touch screen

Processor & Operating Systems

TI OMAP4430 1GHz Dual-core ARM® Cortex™-A9 MPCore™
Windows EC7

Integrated Peripherals

Fully-integrated radio and antenna for long range robotic total station control
4G modem, WLAN and Bluetooth®
5MP camera and flash
Compass, tilt and accelerometer

3D Viewer

Zoom, pan, orbit and window
Live stream video overlay (from imaging total stations)
Full data interaction

Easy to use Interface

Great design
Swipe to choose jobs and apps
Customisable home-screen
Transitions and animations

Leica Active Assist

Expert help, always by your side

Imagine being in the field and coming across a problem that prevents you from finishing the job. You call your local support engineer but have trouble explaining your exact problem.

By simply pressing a button in the field software, you can activate Active Assist, and your local support engineer can securely access your device and see exactly what you see. By pressing the buttons for you, your support engineer can guide you back to full productivity within minutes. You can continue with confidence to complete the survey, and know if the problem ever arises again, you can solve it yourself after being guided step-by-step through a solution.

Handheld controllers connecting to the internet

With an integrated WiFi and 4G module (GSM/GPRS/UMTS), your Leica CS20 easily connects directly to the internet to enable Active Assist.
