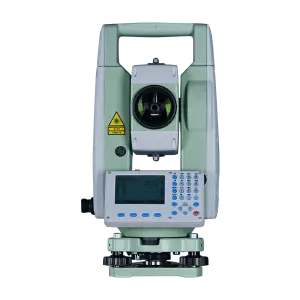

High Precision Sanding STS-722R 10U/15U 1000M Reflector Total Station High Precision Survey Instrument Total Station
In Stock
$1,200
In Stock
Description
| Technical Indicators | |
| Model | STS-722R10U/STS-722R15U |
| Odometry | |
| Single prism | 5000m |
| Prism | 7000m |
| precision | ±(2+2×10-6· D)mm |
| Measure the time | Precision measurement is 0.3 seconds, tracking is 0.1 seconds |
| Ranging Measurement (No Cooperative Target) | |
| Odometry (Kodak Gray, 90% reflectivity) | 1000m/1500m |
| Reflector (60mm×60mm) | |
| precision | 0~500m:±(3+2×10-6· D)mm |
| 500~1000m:±(5+2×10-6· D)mm | |
| 1000~1500:±(10+2×10-6· D)mm | |
| Measure the time | 0.3~3 seconds |
| Meteorological corrections | The input temperature and air pressure are automatically corrected |
| Prism constant correction | The input parameters are automatically corrected |
| Angular measurements | |
| Goniometric method | Absolutely-coded |
| Disc diameter | 79mm |
| Readings are reachable | 0.1″/1″/5″ optional |
| precision | 2″ |
| Detection method | Horizontal Disk: Opposite Diameter Vertical Disk: Opposite Diameter |
| telescope | |
| imaging | As |
| Barrel length | 154mm |
| Effective aperture of the objective | Telescope: 45mm Range: 50mm |
| Magnification | 30× |
| Field of view | 1°30′ |
| resolution | 3″ |
| Minimum focusing distance | 1.2m |
| Automatic vertical compensator | |
| Compensation system | Dual-shaft liquid photoelectric electronic compensator |
| Scope of work | ±4′ (± 6′ optional) |
| resolution | 1″ |
| leveler | |
| Pipe level | 30″/2mm |
| Circular level | 8′/2mm |
| Optical centerer | |
| imaging | As |
| Magnification | 3× |
| Focus range | 0.5m~∞ |
| Field of view | 5° |
| Laser aligner | |
| Alignment accuracy | ± 1.5 mm (at 1.5 m) |
| brightness | It has the function of adjusting the brightness |
| Show section | |
| type | 2.6-inch screen; Double-sided, 6-line Chinese display, one-key backlight, clearly visible under strong light |
| Digital display | Large: 99999999.9999 Small: 1mm/0.1mm (settable) |
| On-board battery | |
| power supply | Rechargeable lithium battery |
| voltage | DC 7.4V |
| capacity | 3100mAH |
| Continuous working hours | 10 hours |
| Dimensions and weight | |
| size | 190mm×190mm×350mm |
| weight | 5.6kg |
| other | |
| Data transmission | U disk interface, built-in Bluetooth as standard |
| The indicator difference is corrected by 2C | The software automatically corrects |
| Dustproof and waterproof rating | IP65 |
