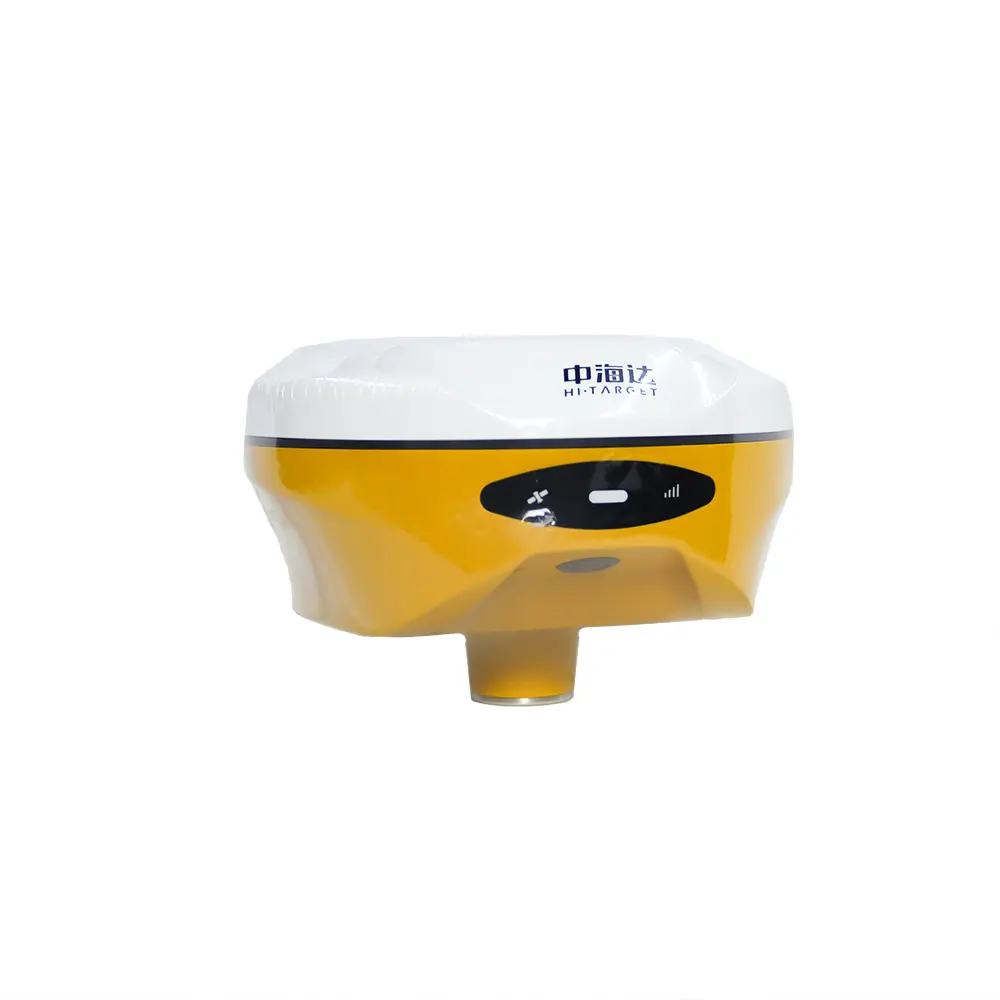

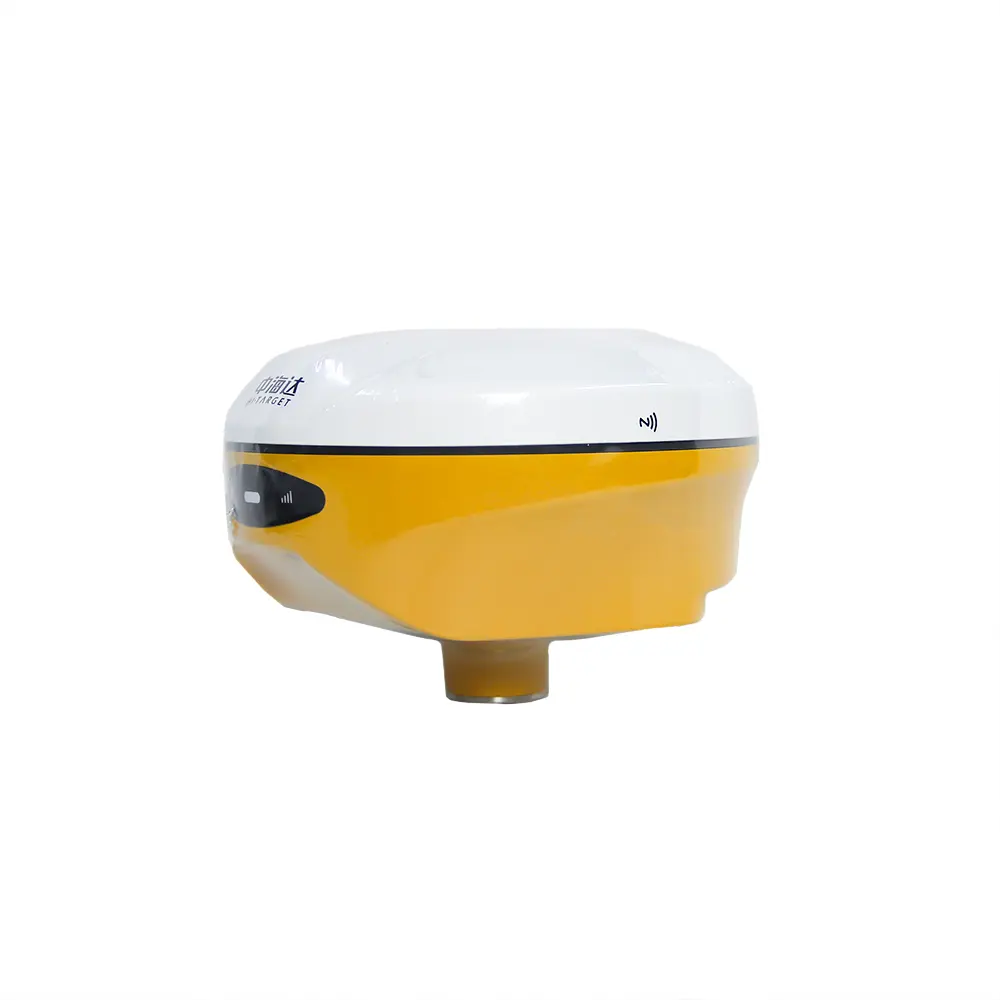

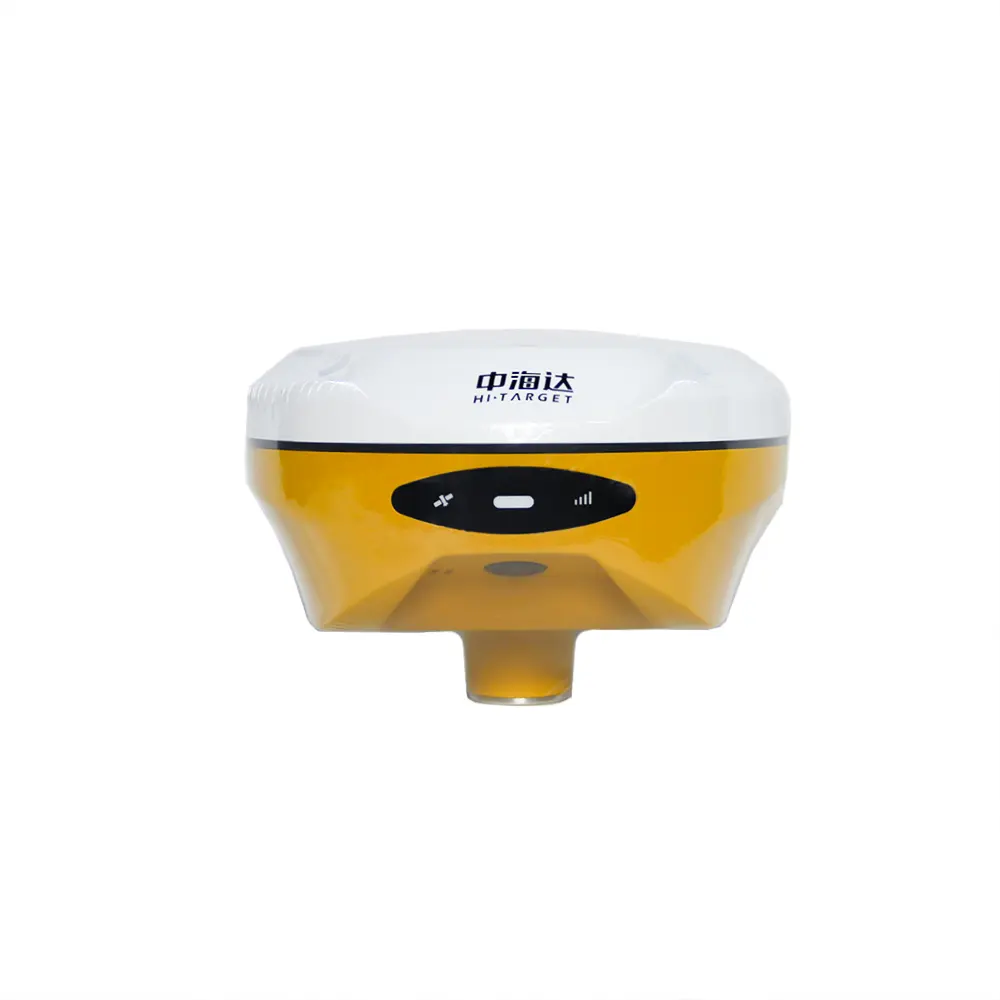

Hi target V300 Gps Rtk Cheap Price Surveying Instrument High Performance Gnss Receiver Rtk

In Stock
$0.00
In Stock
Category:

Description

GNSS configuration Channel: 1408
Satellite tracking:BDS:B1I,B2I,B3I,B1C,B2a,B2b
GPS:L1C/A,L1C,L2P(Y),L2C,L5
GLONASS:L1,L2
GALILEO:E1,E5a,E5b,E6*
QZSS:L1,L2,L5,L6*
IRNSS:L5*
SBAS:L1,L2,L5
L-BAND*
Output format ASCII:NMEA-0183,Binary code
Positioning output frequency 1Hz~20Hz
Static data format GNS, Rinex dual-format static data
Difference scheme RTCM2.X,RTCM3.X
Network mode VRS,FKP,MAC; Supports the NTRIP protocol
System configuration Operating system Linux Operating system
Data storage Built-in 16GB ROM, support static data automatic cycle storage
Accuracy and reliability RTK positioning accuracy Plane: ±(8+1×10-6Dmm(D is the distance between measured points)
Height: ±(15+1×10-6D)mm(D is the distance between measured points)
Static positioning accuracy Plane: ±(2.5+0.5×10-6D)mm(D is the distance between measured points)
Height: ±(5+0.5×10-6D)mm(D is the distance between measured points)
Difference accuracy of satellite station Plane accuracy: 10cm; Height accuracy: 20cm
DGPS positioning accuracy Plane accuracy: ±0.25m+1ppm; Elevation accuracy: ±0.50m+1ppm
SBAS positioning accuracy 0.5m
Inclination measurement accuracy 8mm+0.7mm/°tilt
Image lofting accuracy 1cm
Initialization time <10 seconds
Initialization reliability >99.99%
Breakpoint continuation RTK measurements are still available during differential signal outages
Camera function Professional star night vision HD camera, large viewing Angle, support real scene lofting
Communication unit I/0 port USB Type-C port, SMA port
Cellular mobility eSIM card: Support host and manual double eSIM, double network double standby, including 3 years of traffic, boot is high precision
Built-in 4G network communication: TDD-LTE,FDD-LTE,WCDMA,TD-SCDMA,EDGE,GPRS,GSM
WiFi communication 802.11a /b/g/n access point and client mode to provide WiFi hotspot services
Bluetooth communication  Bluetooth® 2.4GHz, BT5.2
Built-in full protocol radio Transceiver integration: base station transmission and mobile station reception
Power: 0.5W/1W/2W adjustable
Frequency band: 410MHz to 470MHz
Protocol: HI-TARGET,TRIMTALK450S,TRIMMARKⅢ,TRANSEOT,SOUTH,CHC,SATEL
Number of channels: 116(16 of which are configurable)
Sensor Electronic bubbles: Intelligent alignment
Tilt measurement: Built-in a new generation of high-precision inertial navigation, automatic startup initialization, automatic attitude compensation
User interface Button: Single button
LED prompt light: satellite light, signal light, power light
Functional application Advanced functions: NFC flash link, WebUI interaction, USB flash drive firmware upgrade
Intelligent application: intelligent voice, function self-test
Remote service: message push, online upgrade, remote control
Cloud services: Device management, location services, collaborative work, data analytics
Physical characteristics Host battery: high capacity lithium battery 6800mAh, working time is better than 16 hours
External power supply: USB 15W charging
Size: Φ130mm×68mm
Environmental characteristics Dustproof and waterproof: IP68
Anti-fall: Resist the natural fall of 2 meters high measuring pole
Relative humidity: 100% non-condensing
Operating temperature: -45℃~+75℃
Storage temperature: -55℃~+85℃
