GPS High Precision Sino GNSS N5 RTK Receiver SinoGNSS Comnav N5
In Stock
$3,600.00
In Stock
Description
Detail Information
| Channel: | 1198 Channels | GPS:: | L1 C/A, L2C, L2P, L5 |
|---|---|---|---|
| Cold Start:: | <50 S | Warm Start:: | <30 S |
| Hot Start:: | <15 S | Initialization Time:: | <10 S |
| PPP: | 10cm Horizontal And 20cm Vertical | Standalone: | 1.5 M 3D RMS |
| SBAS: | 1 M 3D RMS | DGPS: | <0.4 M RMS |
| Highlight: | High Precision RTK Receiver
, GNSS N5 RTK Receiver , GPS GNSS Receiver N5 |
||
Product Description
Product Description
2022 new model High Precision SinoGNSS N5 GNSS Receiver Comnav N5 RTK GPS.
Description
Full constellations tracking Powerful tracking capability with 1198 Channels Support all current and future GNSS constellations Improved fixed rate by integrated with new anti-interference algorithm technology

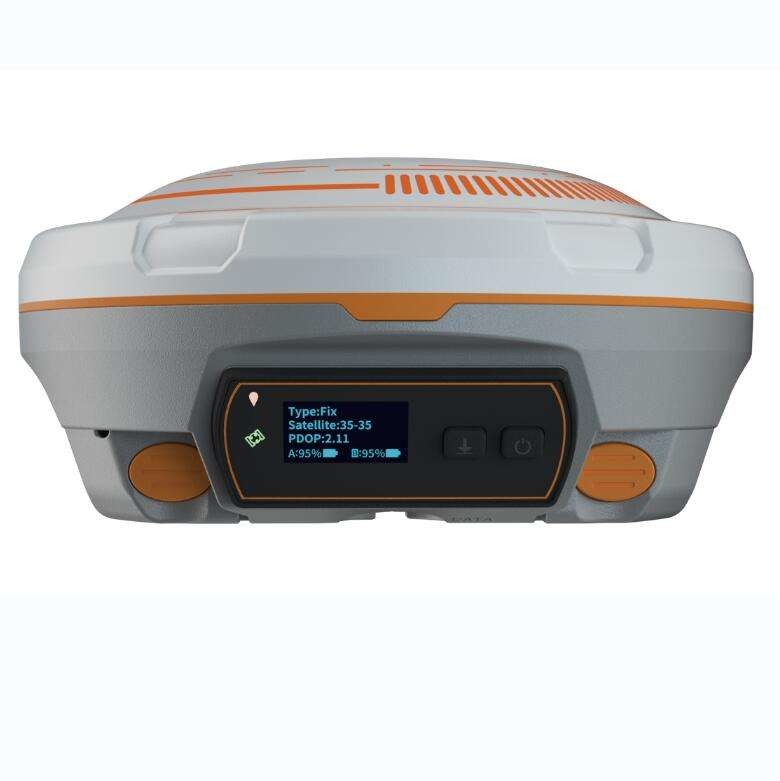

Enhanced OLED Display Sunlight readability for a clear, easy-to-read viewing experience Handle all of surveying operations on screen freely
6800mAh Large Li-battery Last over 15hrs’ work time. Support mobile charging, no worry about power-off
Support PPP Easy installation, start survey work without base station. Achieve centimeter-level accuracy with PPP mode
Rugged housing IP 67 waterproof and dustproof Survive a 2m drop onto concrete
Web-based UI Available for users to check receiver status via the web UI. Easily download the static data without connecting cable
Adjustable TX & RX Internal UHF* Integrated UHF ranges from 410 to 470 MHz with 12.5 KHz channel spacing
Seamlessly Work with GNSS Network RTK Corrections Perfectly work with all kinds of CORS worldwide with in-built 4G modem
Technical parameter
|
Mode
|
Accuracy
|
|
Static and
Fast Static |
2.5 mm + 0.5 ppm Horizontal
5 mm + 0.5 ppm Vertical |
|
Long Observations
Static |
3 mm + 0.1 ppm Horizontal
3.5 mm + 0.4 ppm Vertical |
|
Real Time
Kinematic |
8 mm + 1 ppm Horizontal
15 mm + 1 ppm Vertical |
|
E-RTK
(<100 km) |
0.2m + 1 ppm Horizontal
0.4m + 1 ppm Vertical |
|
DGPS
|
<0.4 m RMS
|
|
SBAS
|
1 m 3D RMS
|
|
Standalone
|
1.5 m 3D RMS
|
|
PPP
|
10cm Horizontal and 20cm Vertical
|
