Endless Friction Drives Stonex R3 Model Total Station Survey Equipment
In Stock
¥9,248
In Stock
Description
Detail Information
| Brand: | Stonex R3 | Accurancy: | 2″ |
|---|---|---|---|
| Reflectorless: | 800m | Magnification / Resolving Power: | 30× |
| Single Prism: | 3500 M | Resolution: | 2.8″ |
| Field Of View: | 1°30′ | Effective Aperture: | 44mm |
| Warranty: | One Year | After Sales Service: | We Have Professional After-sales Service |
| Minimum Display Reading: | 1″ | Packing Size: | 0.53*0.33*0.41m |
| Package: | With Plastic Case Inner And The Carton Outer | ||
| Highlight: | Stonex R3 total station
, Endless Friction total station , 800m total station instrument |
||
Product Description
Product Description
2021 hot sell cheap Stonex Total Station Price Endless Friction Drives Stonex R3 model Total Station
Long measuring distance (800m without prism)
Using digital phase laser ranging technology, high precision measurement of long-distance target can be achieved in prism free mode, ranging up to 800 meters; Single prism 3500 meters.
The ranging speed is fast
Equipped with a new type of fast digital ranging lens, and the application of new ranging technology, a single fine measurement of 0.8 seconds, tracking of 0.3 seconds, effectively guarantee the measurement efficiency.
One click measurement
When the instrument is measuring, the eye does not need to leave the telescope, and the measurement can be completed with one key. One key measurement has little influence on measurement operation, which can ensure the accuracy of measurement work.
Two axis compensation
The fully automatic two axis compensator, combined with the visual display of electronic graphics blisters, can achieve accurate leveling and ensure the accuracy of horizontal position.
| project | Subproject | description |
| telescope | Imaging | Just like |
| Magnification | 30× | |
| Lens tube length | 160mm | |
| Resolution | 2.8″ | |
| Field of view | 1°30′ | |
| Effective aperture | 44mm | |
| Angle measurement part | Angle measurement method | Absolute coding system |
| Precision | level 2 | |
| Minimum display reading | 1″ | |
| Display unit | 360° / 400 gon / 6400 mil | |
| Ranging part | Ranging light source | 650~690nm |
| measure time | 0.5s (quick test) | |
| Spot diameter | 12mm×24mm (at 50m) | |
| Laser pointing | Switchable laser pointer | |
| Laser class | Class 3 | |
| No prism | 800 m | |
| Single prism | 3500 m | |
| Prism accuracy | 2mm+2×10 -6×D | |
| Prism-free accuracy | 3mm+2×10-6 ×D | |
| Prism constant correction | -99.9mm +99.9mm | |
| Minimum reading | Precision measurement mode 1 mm Tracking measurement mode 10 mm | |
| Temperature setting range | −40℃+60℃ | |
| temperature range | Step size 1℃ | |
| Atmospheric pressure correction | 500 hPa-1500 hPa | |
| Atmospheric pressure | Step length 1hPa | |
| Level | Long level | 30″/ 2 mm |
| Circular level | 8′ / 2 mm | |
| Laser plummet | wavelength | 635 nm |
| Laser class | Class 2 | |
| Precision | ±1.5 mm / 1.5m | |
| Spot size/energy | Adjustable | |
| Maximum output power | 0.7 -1.0 mW, adjustable through software switch | |
| Compensator | Compensation method | Dual axis compensation |
| Compensation method | Graphical | |
| The scope of work | ±4′ | |
| Resolution | 1″ | |
| Onboard battery | power supply | lithium battery |
| Voltage | DC 7.4V | |
| operating hours | About 20 h (25℃, measurement + distance measurement, interval 30s), only when measuring angle> 24 h | |

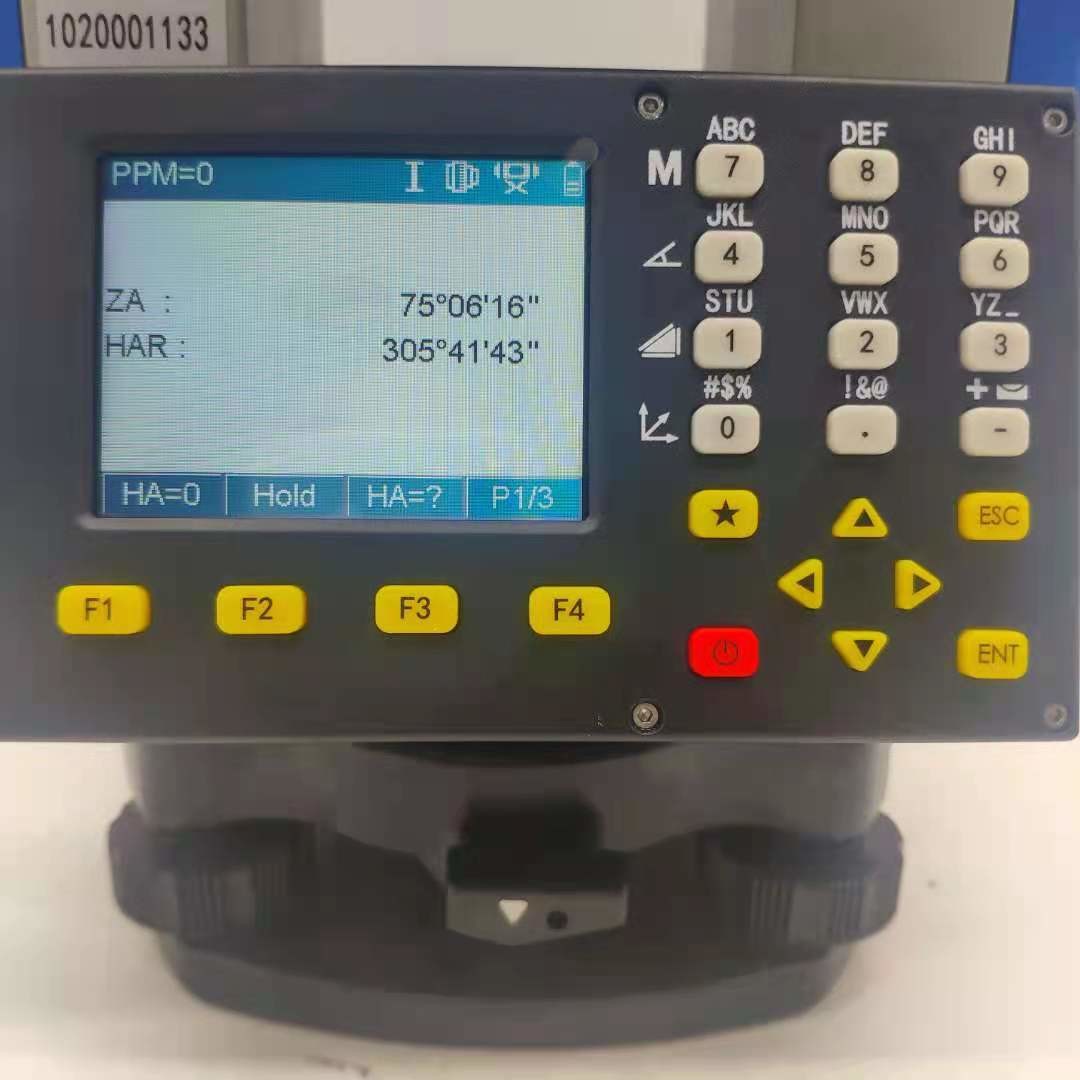

| Display/Button | Types of | 2.8 inch color screen |
| illumination | LCD backlight | |
| button | Full numeric keyboard | |
| data transmission | Interface Type | USB interface |
| Bluetooth transmission | stand by | |
| Environmental indicators | Operating temperature | -20℃ – 50℃ |
| storage temperature | -40℃ – 60℃ | |
| Waterproof and dustproof | IP 54 |
Packaging & Shipping
Our Services
1. Warranty: 12 months warranty is offered for survey equipment. 6 months warranty offered for survey accessory. Warranty comes in effective from the day your receive good.
2. Repair in warranty: We are responsible for supplying new parts for repairing. Round way freight will be charged by us. If it is necessary, product will be required to send back to our service center to be repaired, round way freight is charged by us. Our engineer will repair in your office for special case.
3. Repair out of warranty: We will offer related parts at commercial cost. Freight will be shared by us
4. Training and calibration: Our engineer is qualified for training and calibration for GNSS and Total Station on site. We offer this service to bulk order while customer has requirement.
5. Technical support is offered 24/365.
