BLEBluetooth 4.0 Standard 5G Trimble RTK GNSS Receiver With IMU
In Stock
$0
In Stock
Description
Detail Information
| Product Name: | RTK GNSS Receiver | Channels: | 336 |
|---|---|---|---|
| Frequency Range: | 410-470MHz | Bluetooth: | BLEBluetooth 4.0 Standard, Bluetooth 2.1+EDR |
| IMU: | Built-in IMU Modul | MSS L-Band: | Trimble RTX |
| Place Of Origin: | China | Certification: | CSA |
| Highlight: | RTK GNSS Receiver with IMU
, 5G RTK GNSS Receiver , 5G trimble rtk system |
||
Product Description

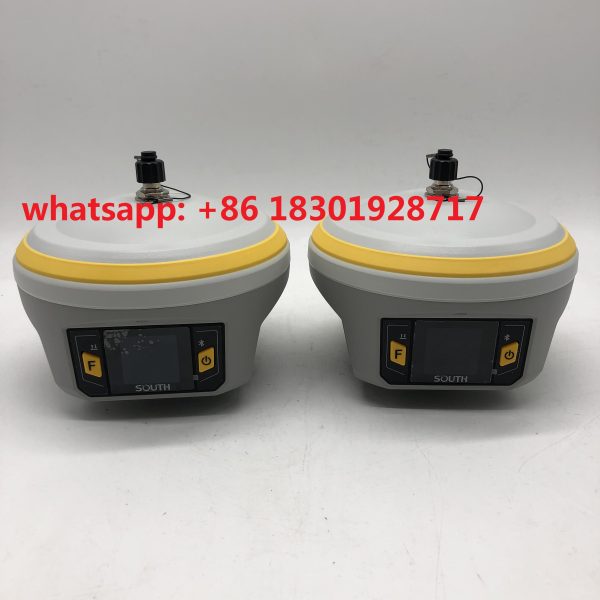

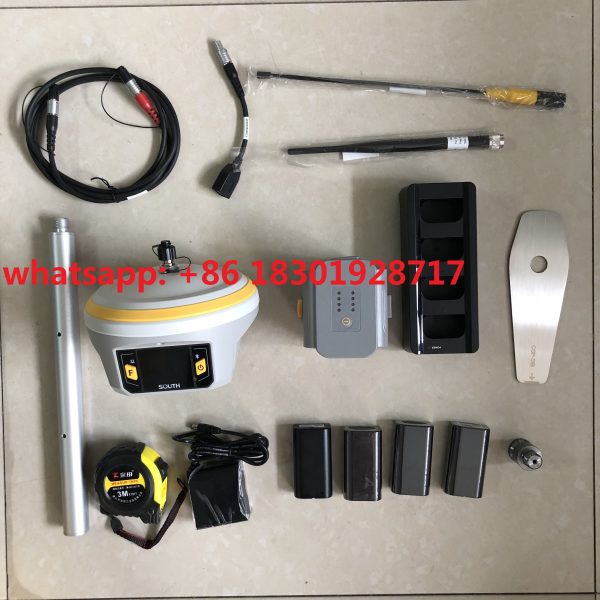

INNO7 with IMU GPS receiver 336 Channels with HD color LCD touch screen
RTK GNSS Receiver information
Real-time kinematic (RTK) positioning is a satellite navigation technique used to enhance the precision of position data derived from satellite-based positioning systems (global navigation satellite systems, GNSS) such as GPS, GLONASS, Galileo, NavIC and BeiDou.
RTK GNSS Receiver specification
| Positioning Precision | Code differential GNSS positioning | Horizontal: 0.25 m + 1 ppm RMS Vertical: 0.50 m + 1 ppm RMS |
| GNSS static | Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm + 0.5 ppm RMS |
|
| Real-time kinematic (Baseline<30km) |
Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1 ppm RMS |
|
| SLink (RTX)[2] | Horizontal: 4-10 cm Vertical: 8-20 cm |
|
| RTK XTRa (xFill)[3] | Horizontal: 5 + 10 mm/min RMS Vertical: 5 + 20 mm/min RMS |
|
| SBAS positioning | Typically<5m 3DRMS | |
| RTK initialization time | 2~8s | |
| IMU tilt compensation | Additional horizontal pole tip uncertainty typically less than 8mm + 0.6 mm/° tilt down to 30° | |
| IMU tilt angle | 0°~60° |
Company information
Shanghai Galxy International Trade company, Ltd. combining with developing, researching and producing. Our company is located in Pudong Developing Zone, and has two subsidiary companies: Shanghai Galaxy International Trade Co., Ltd. and Mato Opto-electrical High-tech Company. Our company has researching center and factory in Changzhou.
