Name: Automatic Tilt GNSS RTK Receiver GPS Base CHCNAV X7 / I83
SKU: 7719
Availability: InStock

Description

Detail Information

Channels:	624 Channels	Model:	CHCNAV X7 /I83
Name:	CHCNAV I83	Type:	Cheap Price
GLONASS:	L1, L2	QZSS:	L1, L2, L5
Real Time Vertical:	15 Mm+ 1 Ppm RMS	Kinematics (RTK):	Initializationtime: < 10 S
Post -processing Kinematics (PPK):	Horizontal: 2.5 Mm+ 1 Ppm RMS Vertical: 5 Mm+ 1 Ppm RMS	Code Differential Positioning Rate:	Horizontal : 0.25 M RMS Up To 10 Hz
Highlight:	Automatic Tilt GPS GNSS Receiver , GPS Base GNSS RTK Receiver , X7 Multi GNSS Receiver

Product Description

2022 Latest Chc GPS Base and Rover Chc X7 /I83 Rtk Gnss:

Features:

The CHC X7 GNSS receiver integrates professional LMU-RTK technology to provide a robust andaccurate positioning. in any circumstances. It combines state-of-the-art GNSS RTK engine, acalibration-free high-end MU sensor and advanced GNSS tracking capabilities to dramaticallyincrease RTK availability and reliability.The 90 automatic pole-tilt compensation boosts survey and stakeout speed by up to 30%Construction and land surveying projects are achieved with high productivity and reliabilitypushing the boundaries of conventional GNSS RTK survey.

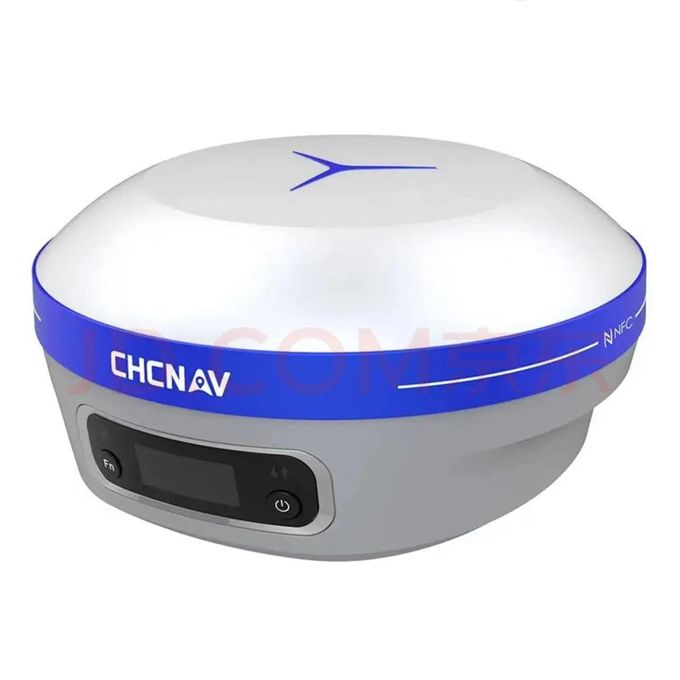

Automatic Tilt GNSS RTK Receiver GPS Base CHCNAV X7 / I83 0

Technical parameter

SPECIFICATIONS
GNSS Performance
Channels 660 channels
Communication
			Integrated 4G modem
			LTE (FDD):B1,B2,B3,B4,B5,B7,B8,B20
Network modem			DC-HSPA+/HSPA+/HSPA/UMTS:
			B1, B2, B5, B8
			EDGE/GPRS/GSM850/900/1800/1900
			MHz
GPS Galileo	L1 C/A, L2C, L2P, L5 E1, E5a, E5b
GLONASS L1, L2
BeiDou B1, B2, B3
SBAS L1							Wi-Fi
BluetoothS ® v4.1
QZSS				L1, L2, L5
GNSS Accuracies
				Horizontal: 8 mm+ 1 ppm RMS
Real time				Vertical: 15 mm+ 1 ppm RMS
kinematics (RTK)				Initializationtime: < 10 s
				Initialization reliability: >99.9%
Post -processing kinematics (PPK)					Horizontal: 2.5 mm+ 1 ppm RMS Vertical: 5 mm+ 1 ppm RMS
Standard Internal Rx/Tx: 410 – 470 MHz Transmit Power: 0.5 W to 2 W UHFradio Protocol: C H C,Transparent, TT450, 3AS Link rate: 9600 bps to 19200 bps Range: Typical 3 km to 5 km
Post – processing static Horizontal: 2.5 mm+ 0.5 ppm RMS Vertical: 5 mm+ 0.5 ppm RMS
Code differential Positioning rate				Horizontal: 0.25 m RMS Up to 10 Hz
Autonomous Horizontal: 1.5 m RMS Vertical: 3 m RMS
Data storage 32 GB internal memory
Electrical
Cold start: < 45 s Time to first fix (3) Hot start: < 10 s Signal re-acquisition: < 1 s
Power consumption 5 W (depending on user settings)
RTK tilt – compensated						Additional horizontal pole-tilt uncertainty
typically less than 10 mm+ 0.7 mm/° tilt
Hardware 159 mmx 150 mmx 110 mm
Size (L x W x H) Environment Ingress protection					(6.3 in × 5.9 in × 4.3 in) Operating: -40°C to +65°C (-40°F to +149°F) Storage: -40°C to +85°C (-40°F to +185°F) IP67 waterproof and dustproof, protected from temporary immersionto depth of 1 m
Weight 1.26 kg (2.77 lb)
Humidity 100% condensation
Shock Survive a 2-meter pole drop
Tilt sensor		Calibration- free IMUfor pole- tilt compensation. Immune to magnetic disturbances. E-Bubble leveling
Front panel 4 LEDindicates 1.46” OLEDDisplay

Packaging & Shipping

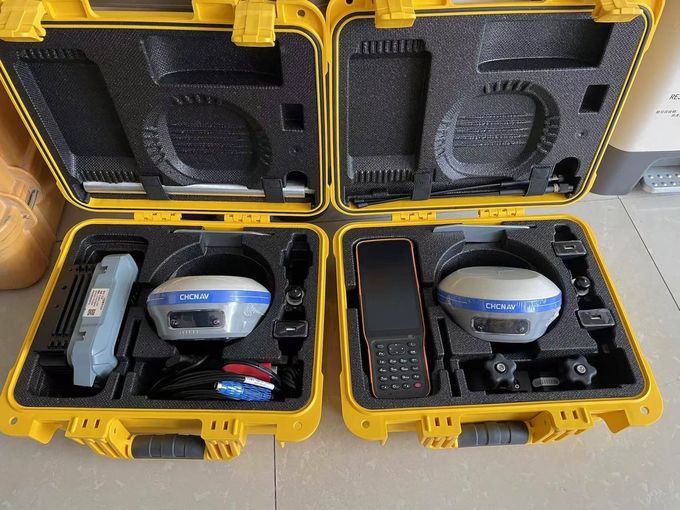

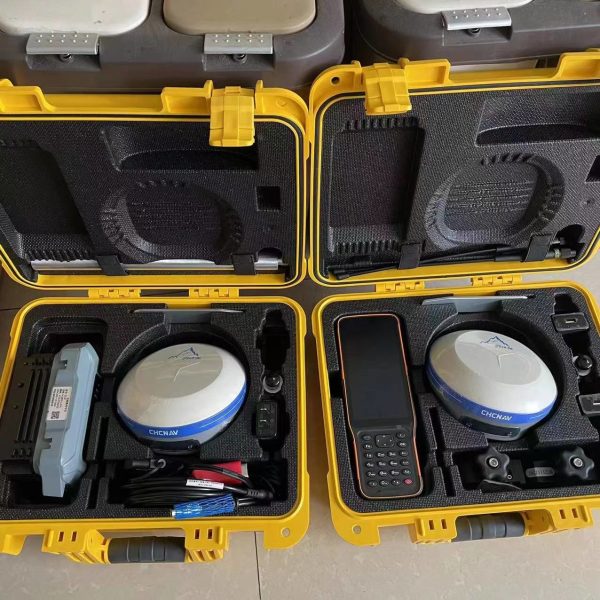

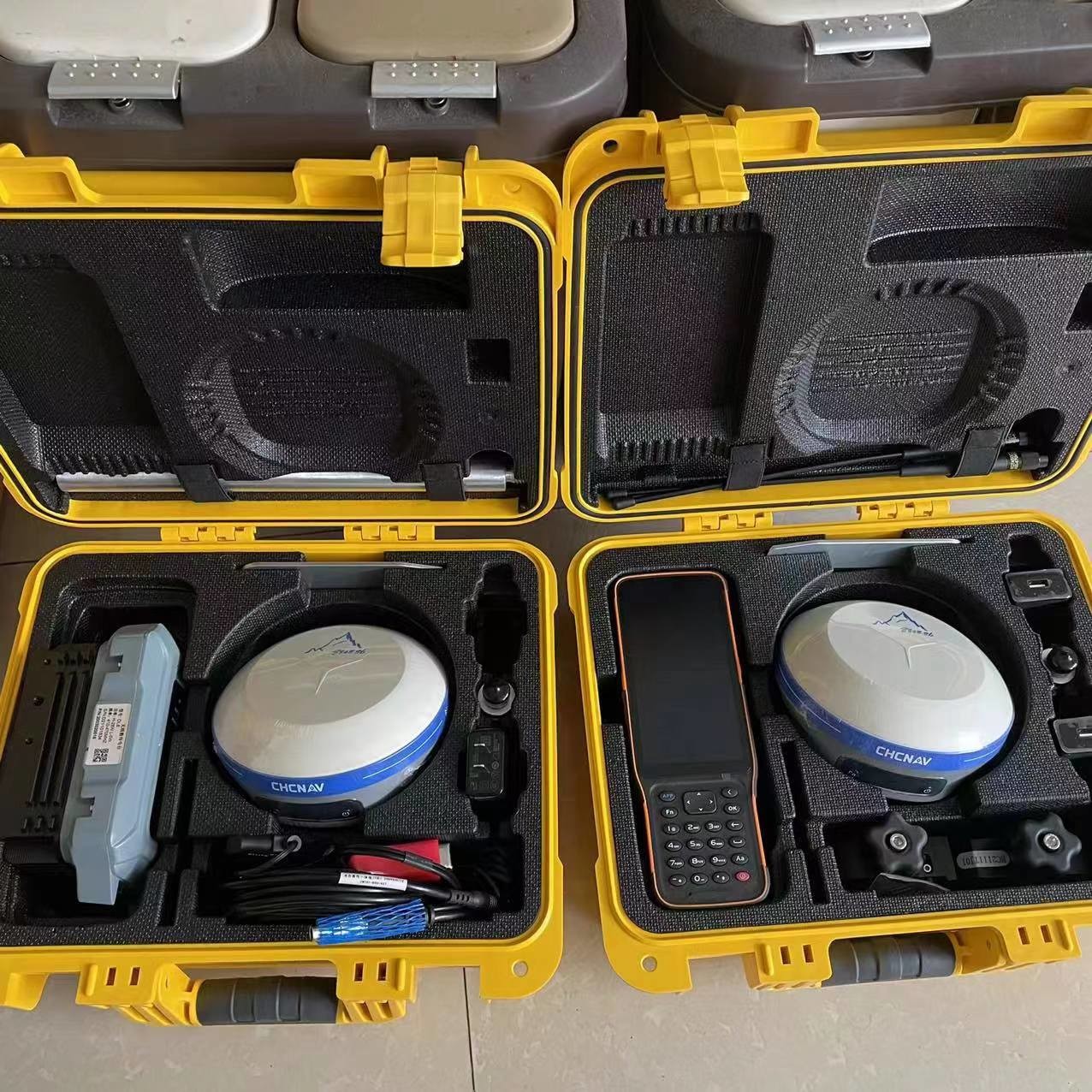

Automatic Tilt GNSS RTK Receiver GPS Base CHCNAV X7 / I83 4

Our Services

1. Warranty: 12 months warranty is offered for survey equipment. 6 months warranty offered for survey accessory. Warranty comes in effective from the day your receive good.
2. Repair in warranty: We are responsible for supplying new parts for repairing. Round way freight will be charged by us. If it is necessary, product will be required to send back to our service center to be repaired, round way freight is charged by us. Our engineer will repair in your office for special case.
3. Repair out of warranty: We will offer related parts at commercial cost. Freight will be shared by us
4. Training and calibration: Our engineer is qualified for training and calibration for GNSS and Total Station on site. We offer this service to bulk order while customer has requirement.
5. Technical support is offered 24/365.
