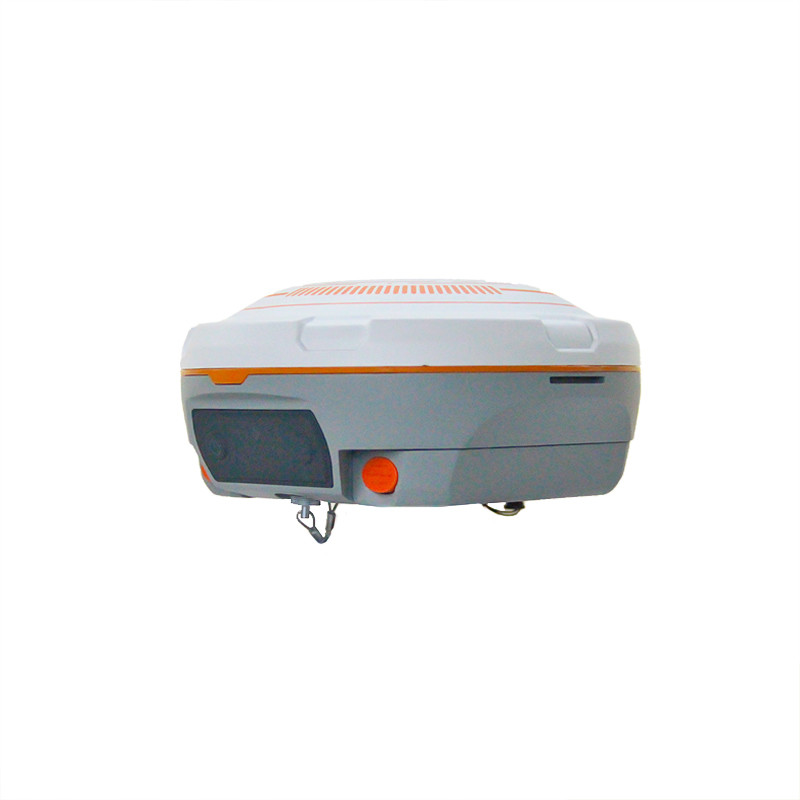

8 GB Memory Sino GNSS Comnav Base And Rover RTK GNSS Receiver Comnav N3
In Stock
$0
In Stock
Description
Detail Information
| Integrated UHF Ranges: | 410 To 470 MHz With 12.5 KHz Channel Spacing | Working Distance Of Internal UHF Varies In Different Environments: | Maximum Distance Is 15 Km In Ideal Situation |
|---|---|---|---|
| Memory:: | 8 GB | Li-ion Battery Capacity:: | 2 × 3400 MAh, 7.4V, Up To 25 Hours Typically |
| Power Consumption:: | 1.7 W | Input Voltage:: | 7-28 VDC |
| Shock:: | Designed To Survive A 2 M Drop Onto Concrete | Humidity:: | 100% Non-condensing |
| Storage Temperature:: | -40 °C To + 85 °C (-40 °F To 185 °F) | Operating Temperature:: | -40 °C To + 65 °C (-40 °F To 149 °F) |
| Initialization Reliability:: | >99.9% | Enhanced UHF Modem 3 :: | Tx/Rx With Full Frequency Range From 410-470 MHz |
| Highlight: | RTK GNSS Receiver 8 GB
, Sino Gps GNSS Receiver , Comnav N3 Multi GNSS Receiver |
||
Product Description
Product Description
Hot sell 8 GB Memory Sino GNSS Comnav base and rover RTK GNSS receiver Comnav N3.
Description

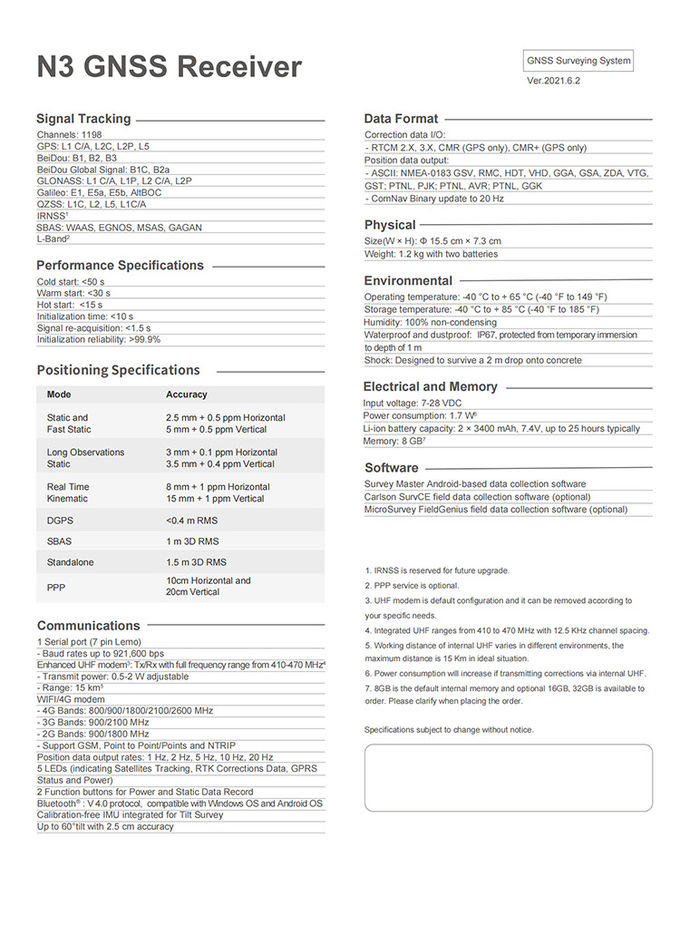

Technical parameter
Signal Tracking
Channels: 1198
GPS: L1 C/A, L2C, L2P, L5
BeiDou: B1, B2, B3
BeiDou Global Signal: B1C, B2a
GLONASS: L1 C/A, L1P, L2 C/A, L2P
Galileo: E1, E5a, E5b, AltBOC
QZSS: L1C, L2, L5, L1C/A
IRNSS 1
SBAS: WAAS, EGNOS, MSAS, GAGAN
L-Band 2
Performance Specifications
Cold start: <50 s
Warm start: <30 s
Hot start: <15 s
Initialization time: <10 s
Signal re-acquisition: <1.5 s
Initialization reliability: >99.9%
Communications
1 Serial port (7 pin Lemo)
– Baud rates up to 921,600 bps
Enhanced UHF modem 3 : Tx/Rx with full frequency range from 410-470 MHz 4
– Transmit power: 0.5-2 W adjustable
– Range: 15 km 5
WIFI/4G modem
– 4G Bands: 800/900/1800/2100/2600 MHz
– 3G Bands: 900/2100 MHz
– 2G Bands: 900/1800 MHz
– Support GSM, Point to Point/Points and NTRIP
Position data output rates: 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz

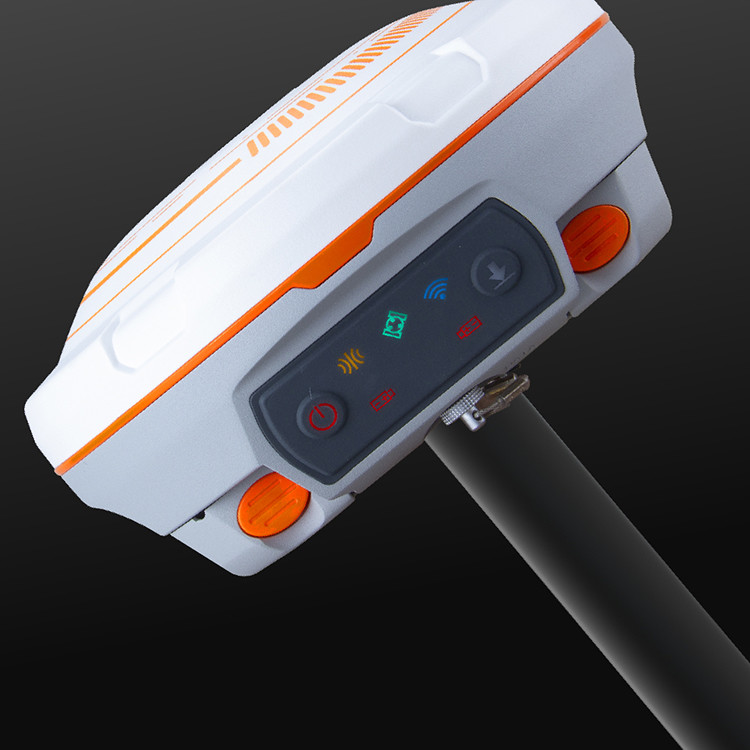

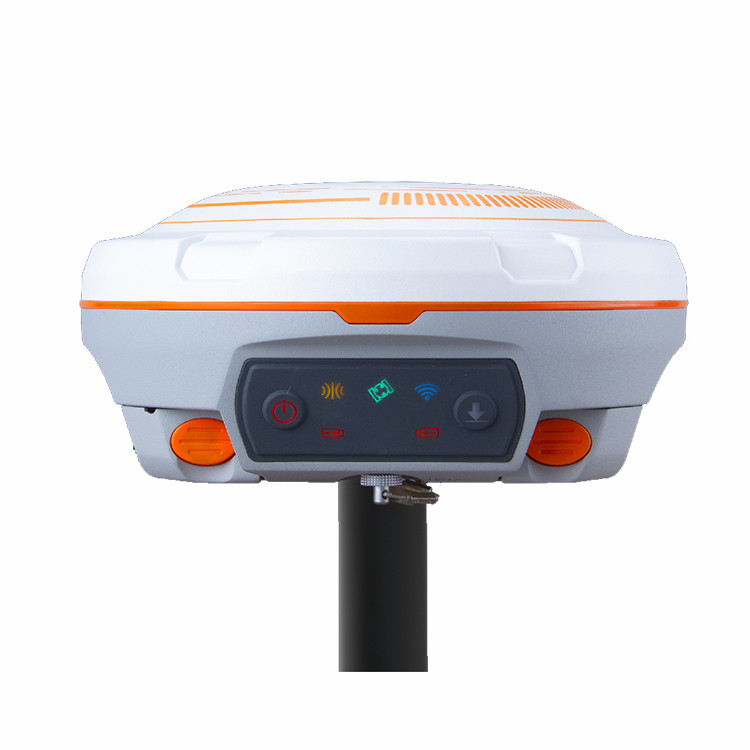

5 LEDs (indicating Satellites Tracking, RTK Corrections Data, GPRS
Status and Power)
2 Function buttons for Power and Static Data Record
® : V 4.0 protocol, compatible with Windows OS and Android OS
Calibration-free IMU integrated for Tilt Survey
Up to 60°tilt with 2.5 cm accuracy
Data Format
Correction data I/O:
– RTCM 2.X, 3.X, CMR (GPS only), CMR+ (GPS only)
Position data output:
– ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG,
GST; PTNL, PJK; PTNL, AVR; PTNL, GGK
– ComNav Binary update to 20 Hz
Physical
Size(W × H): Φ 15.5 cm × 7.3 cm
Weight: 1.2 kg with two batteries
Environmental
Operating temperature: -40 °C to + 65 °C (-40 °F to 149 °F)
Storage temperature: -40 °C to + 85 °C (-40 °F to 185 °F)
Humidity: 100% non-condensing
Waterproof and dustproof: IP67, protected from temporary immersion
to depth of 1 m
Shock: Designed to survive a 2 m drop onto concrete
Electrical and Memory
Input voltage: 7-28 VDC
Power consumption: 1.7 W 6
Li-ion battery capacity: 2 × 3400 mAh, 7.4V, up to 25 hours typically
Memory: 8 GB 7

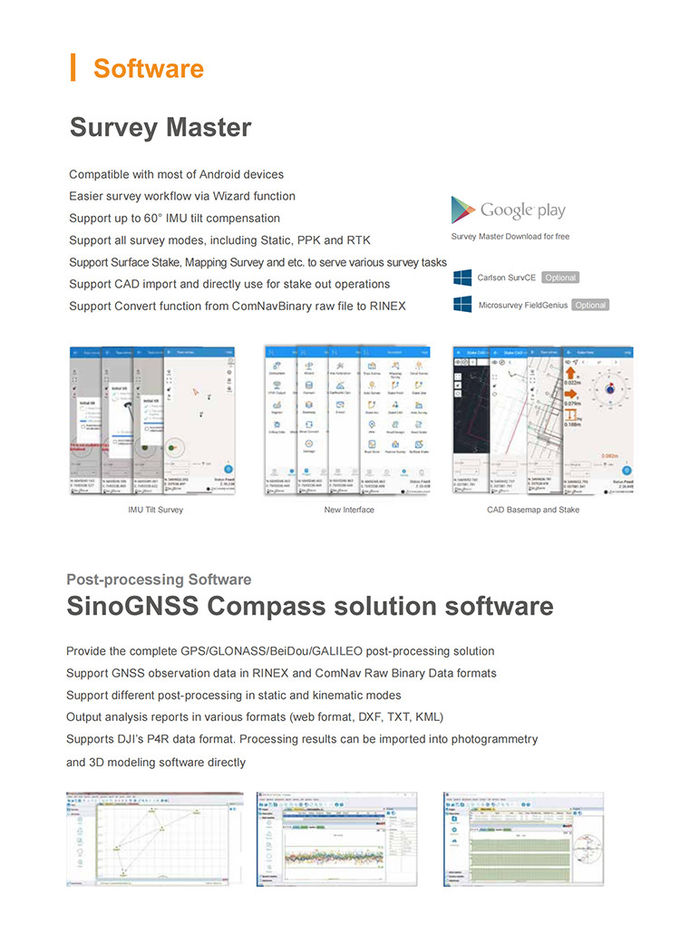

Software
Survey Master Android-based data collection software
Carlson SurvCE field data collection software (optional)
MicroSurvey FieldGenius field data collection software (optional)
1. IRNSS is reserved for future upgrade.
2. PPP service is optional.
3. UHF modem is default configuration and it can be removed according to
your specific needs.
4. Integrated UHF ranges from 410 to 470 MHz with 12.5 KHz channel spacing.
5. Working distance of internal UHF varies in different environments, the
maximum distance is 15 Km in ideal situation.
6. Power consumption will increase if transmitting corrections via internal UHF.
7. 8GB is the default internal memory and optional 16GB, 32GB is available to
order. Please clarify when placing the order.
Specifications subject to change without notice.
