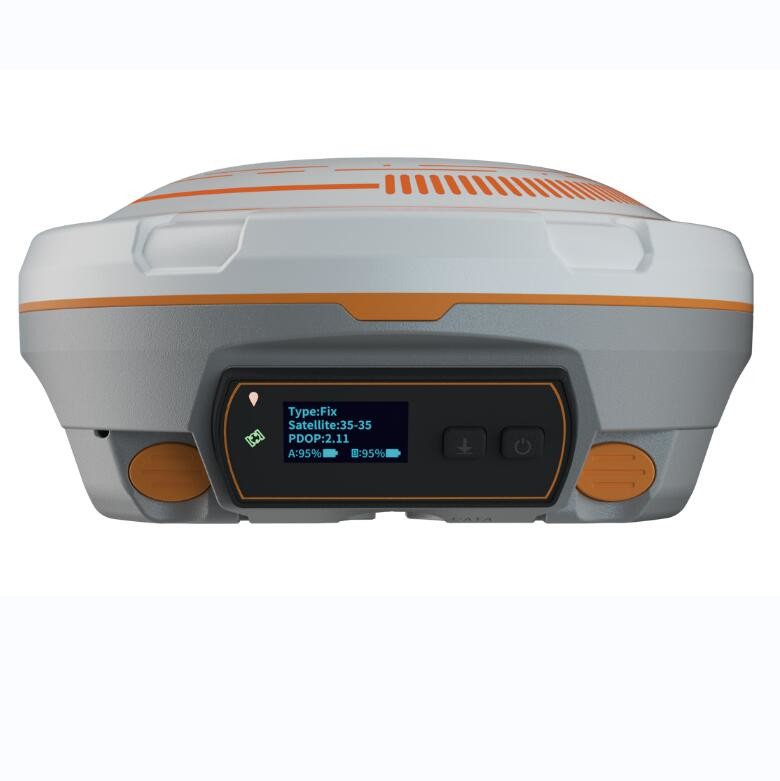

7 – 28 VDC Input Voltage SinoGNSS N5 RTK GPS Comnav N5 IMU GNSS Receiver
In Stock
$3,600
In Stock
Description
Detail Information
| Memory:: | 8 GB | Li-ion Battery Capacity:: | 2 × 3400 MAh, 7.4V, Up To 25 Hours Typically |
|---|---|---|---|
| Power Consumption:: | 1.7 W | Input Voltage:: | 7-28 VDC |
| Shock:: | Designed To Survive A 2 M Drop Onto Concrete | Humidity:: | 100% Non-condensing |
| Storage Temperature:: | -40 °C To + 85 °C (-40 °F To 185 °F) | Operating Temperature:: | -40 °C To + 65 °C (-40 °F To 149 °F) |
| Initialization Reliability:: | >99.9% | Static And Fast Static Horizontal: | 2.5 Mm + 0.5 Ppm |
| Long Observations Static: | 3 Mm + 0.1 Ppm Horizontal 3.5 Mm + 0.4 Ppm Vertical | Real Time Kinematic: | 8 Mm + 1 Ppm Horizontal 15 Mm + 1 Ppm Vertical |
| Static And Fast Static Vertical: | 5 Mm + 0.5 Ppm | ||
| Highlight: | GPS GNSS Receiver 28 VDC
, Comnav N5 IMU GPS GNSS Receiver , SinoGNSS Bluetooth GPS Receiver |
||
Product Description
Product Description

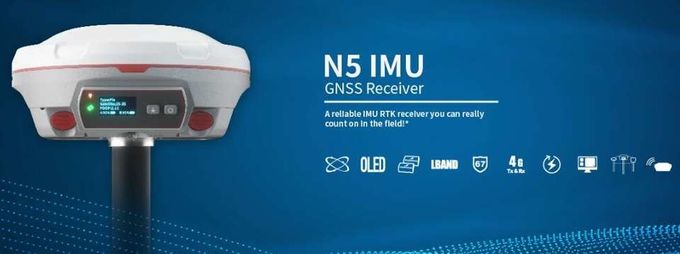

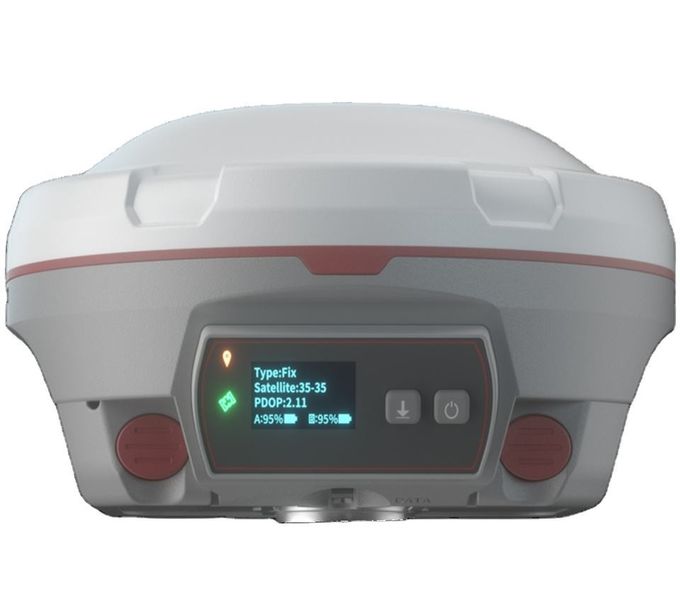

Chinese brand 7-28 VDC Input voltage SinoGNSS N5 RTK GPS Comnav N5 IMU GNSS Receiver.
Description

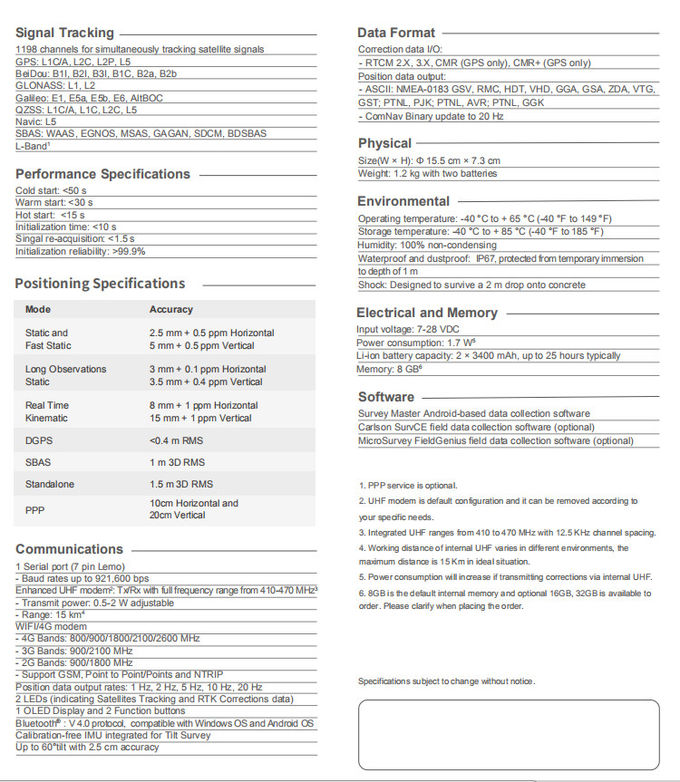

Technical parameter
|
Mode
|
Accuracy
|
|
Static and
Fast Static |
2.5 mm + 0.5 ppm Horizontal
5 mm + 0.5 ppm Vertical |
|
Long Observations
Static |
3 mm + 0.1 ppm Horizontal
3.5 mm + 0.4 ppm Vertical |
|
Real Time
Kinematic |
8 mm + 1 ppm Horizontal
15 mm + 1 ppm Vertical |
|
E-RTK
(<100 km) |
0.2m + 1 ppm Horizontal
0.4m + 1 ppm Vertical |
|
DGPS
|
<0.4 m RMS
|
|
SBAS
|
1 m 3D RMS
|
|
Standalone
|
1.5 m 3D RMS
|
|
PPP
|
10cm Horizontal and 20cm Vertical
|

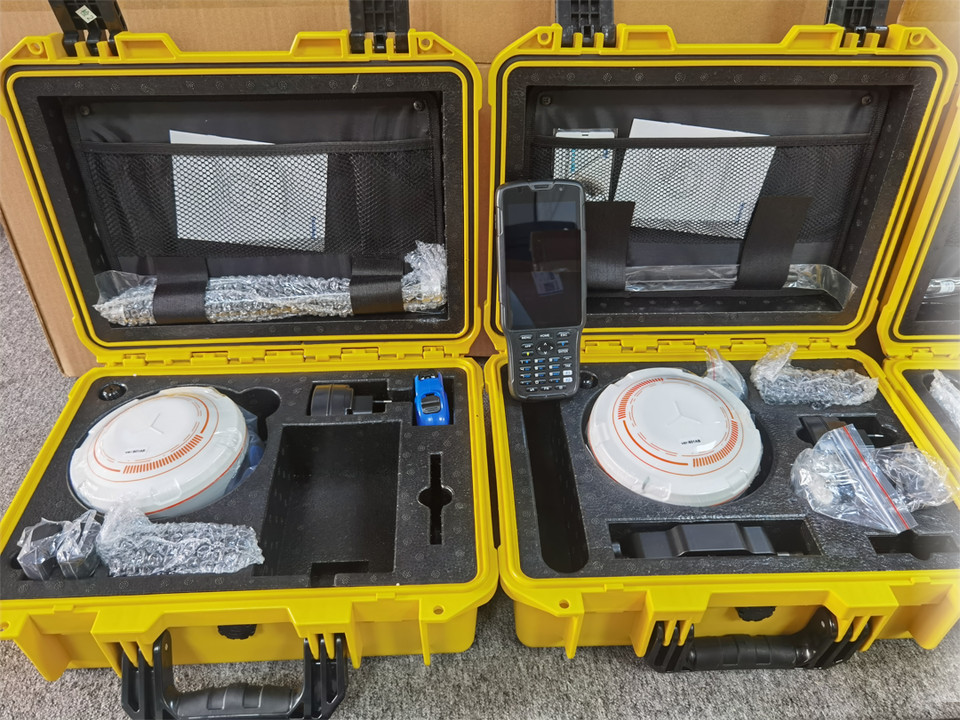

Packaging & Shipping
Our Services
1. Warranty: 12 months warranty is offered for survey equipment. 6 months warranty offered for survey accessory. Warranty comes in effective from the day your receive good.
2. Repair in warranty: We are responsible for supplying new parts for repairing. Round way freight will be charged by us. If it is necessary, product will be required to send back to our service center to be repaired, round way freight is charged by us. Our engineer will repair in your office for special case.
3. Repair out of warranty: We will offer related parts at commercial cost. Freight will be shared by us
4. Training and calibration: Our engineer is qualified for training and calibration for GNSS and Total Station on site. We offer this service to bulk order while customer has requirement.
5. Technical support is offered 24/365.
