3D Modeling CHC I93 Rtk GNSS Easy Operate Gps Receiver Visual Survey CHCNAV CHC X16pro

In Stock
$0
In Stock
Category:

Description

Detail Information
IMU Update Rate: 200Hz Slope: 0-60 Degrees
Button: Static Toggle Key + Power/confirm Key Web Page: Support PC/mobile Web Pages
Function: Support Visual Stakeout Pixel: 2MP
Frame Rate: 25Hz Field Of View (H, V): 75°, 75°
Illumination: Starlight-level Camera, Still Maintains Full-color Picture Under 0.01lux Illumination Operating Temperature: -45ºC~+75ºC
Storage Temperature: -55ºC~+85ºC
Highlight: CHC I93 Gps Receiver

,

3D Modeling RTK GNSS Receiver

,

Visual Survey RTK GNSS Receiver



Product Description



Product Description

Visual survey CHCNAV brand CHC X16pro gps 3D modeling CHC i93 rtk GNSS easy operate gps receiver​:

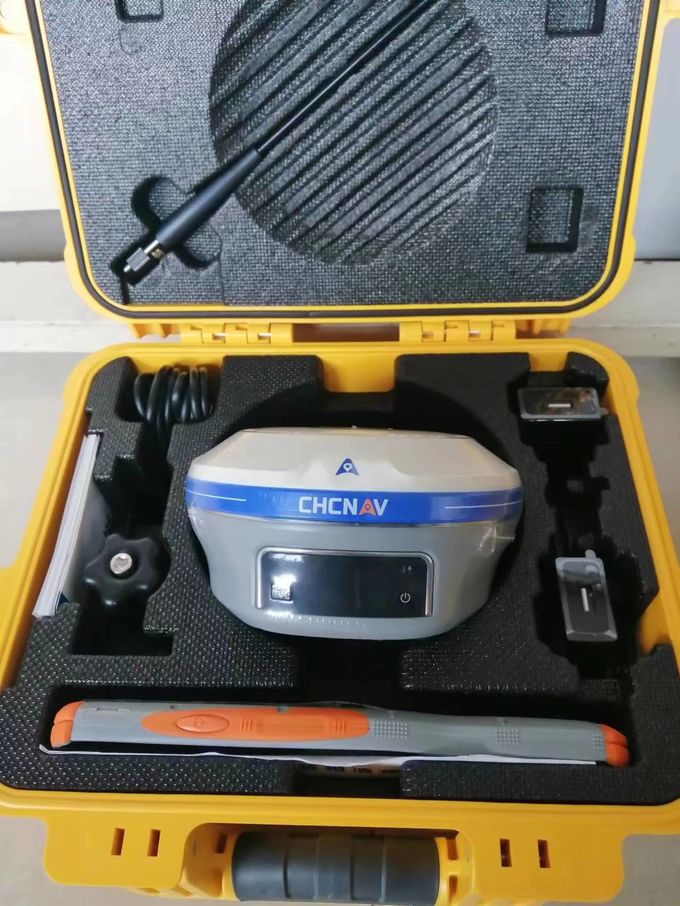

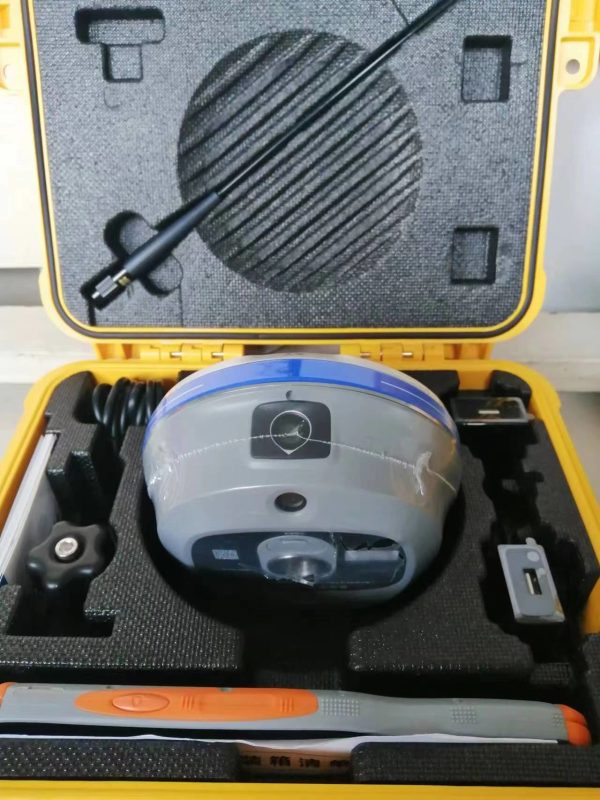

3D Modeling CHC I93 Rtk GNSS Easy Operate Gps Receiver Visual Survey CHCNAV CHC X16pro 03D Modeling CHC I93 Rtk GNSS Easy Operate Gps Receiver Visual Survey CHCNAV CHC X16pro 1



Technical parameter
project content index
Satellites and Accuracy satellite system GPS+BDS+Glonass+Galileo+QZSS, support the third generation of Beidou, support five-star twenty-one frequency
number of channels 1408
Initialize reliability 99.90%
No network continued test Support high-precision solution, the base station can publish data such as power information
Signal capture sensitivity Typical value -162dbm, stronger ability to capture weak signal
satellite-based differential Support L-Band function:
(optional) Support Beidou third-generation B2b-ppp service, the accuracy can reach centimeter level
Support domestic satellite-based enhanced services (centimeter level)
Support ground-based augmentation system differential services (centimeter level)
Global satellite-based centimeter-level services can be opened
GNSS+Inertial Navigation[2] IMU update rate 200Hz
slope 0-60 degrees
super inertial navigation Support travel process to complete initialization, and support centering rod calibration
User interaction indicator light 1 satellite light + 1 differential data light + 1 static indicator light + 1 power light
button Static toggle key + power/confirm key
web page Support PC/mobile web pages
Camera Function Support visual stakeout
pixel 2MP
frame rate 25Hz
Field of View (H, V) 75°, 75°
Illumination Starlight-level camera, still maintains full-color picture under 0.01lux illumination
physical properties size Φ133mm*87.6mm
weight 0.8 Kg (including battery)
material magnesium alloy
Operating temperature -45ºC~+75ºC
storage temperature -55ºC~+85ºC
waterproof breathable membrane Prevent water vapor from entering the equipment in harsh environments such as sun exposure and sudden heavy rain
Waterproof and dustproof IP68 (Protection against 1 meter immersion in water for 30 minutes)
anti-collision IK08 (with the same mechanical impact force as a 2.5kg steel ram without damage, 3 meters drop resistance)
Electrical properties Battery Built-in 6600mAh lithium battery
The typical battery life of the mobile station is more than 16h
fast charge Support fast charge, up to 24w fast charge
Built-in storage 8GB, can support external expansion 128G, automatic cycle storage, disk
After the storage is full, it will be automatically deleted, and the static data of the receiver will be copied with one key.
data output Differential data RTCM2.X, RTCM3.X, CMR, CHC516
positioning data NMEA-0183
static data HCN, RINEX 2.11, RINEX3.02
data communication wireless connection Support Wi-Fi data link
network module Handbook supports 4G full Netcom
radio Built-in single-receiver radio, support CTI/TT450/transparent transmission protocol
Advanced Features One-click fix Comes with a CORS account, which can be fixed at startup
Smart service Support CTI cloud service, provide cloud storage, function code sharing
control handbook model HCE600 Android Measurement Handbook
operating system Android 10
CPU Octa-core 2.0GHz processor
network 4G full Netcom, built-in eSIM for three years of surveying and mapping traffic
Operating temperature -30ºC-+60ºC
Storage temperature -40ºC-+80ºC
Waterproof and dustproof IP68
Packaging & Shipping

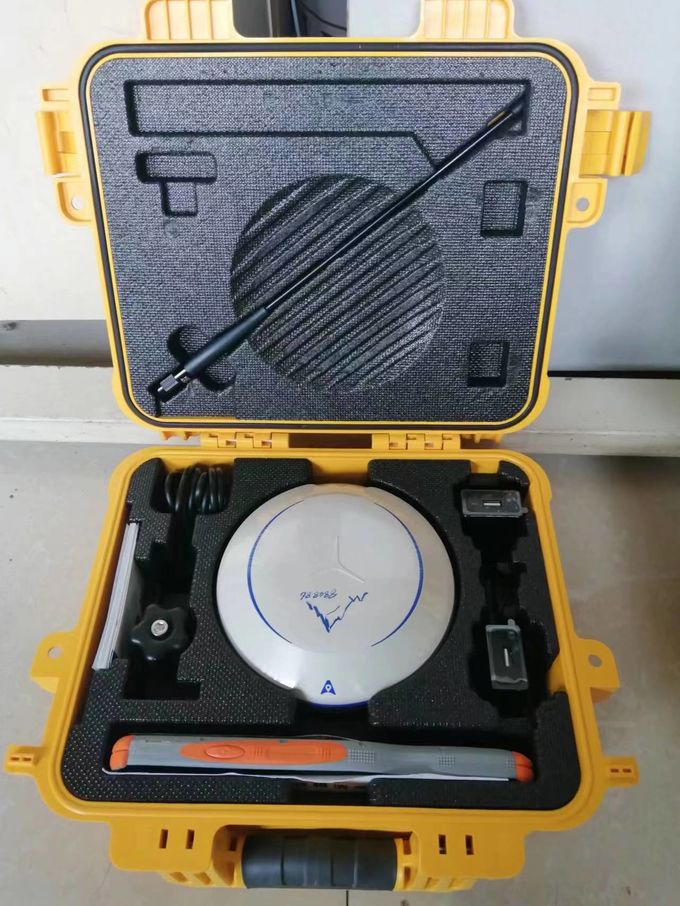

3D Modeling CHC I93 Rtk GNSS Easy Operate Gps Receiver Visual Survey CHCNAV CHC X16pro 2



Our Services

1. Warranty: 12 months warranty is offered for survey equipment. 6 months warranty offered for survey accessory. Warranty comes in effective from the day your receive good.
2. Repair in warranty: We are responsible for supplying new parts for repairing. Round way freight will be charged by us. If it is necessary, product will be required to send back to our service center to be repaired, round way freight is charged by us. Our engineer will repair in your office for special case.
3. Repair out of warranty: We will offer related parts at commercial cost. Freight will be shared by us
4. Training and calibration: Our engineer is qualified for training and calibration for GNSS and Total Station on site. We offer this service to bulk order while customer has requirement.
5. Technical support is offered 24/365.
